TOP242R-TL

Part No :: TOP242R-TL

Manufacturer: Power Integrations

VIGOR # :: 3931496

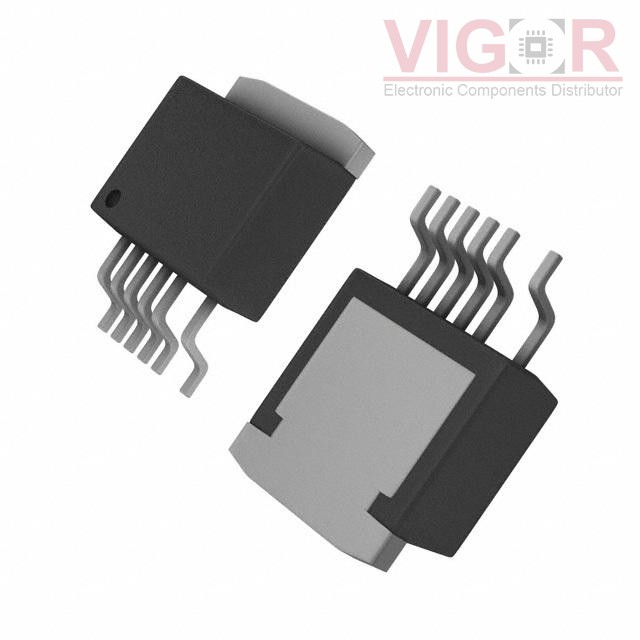

Description: IC OFFLINE SWIT UVLO HV D2PAK

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: TOP242R-TL PDF

Country of origin: -

Date code: -

TOP242R-TL Specifications

Type	Description
Series:	TOPSwitch®-GX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	66.5%
Frequency - Switching:	66kHz ~ 132kHz
Power (Watts):	22 W
Fault Protection:	Current Limiting, Over Temperature, Over Voltage
Control Features:	Frequency Control
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Supplier Device Package:	TO-263-7C
Mounting Type:	Surface Mount
