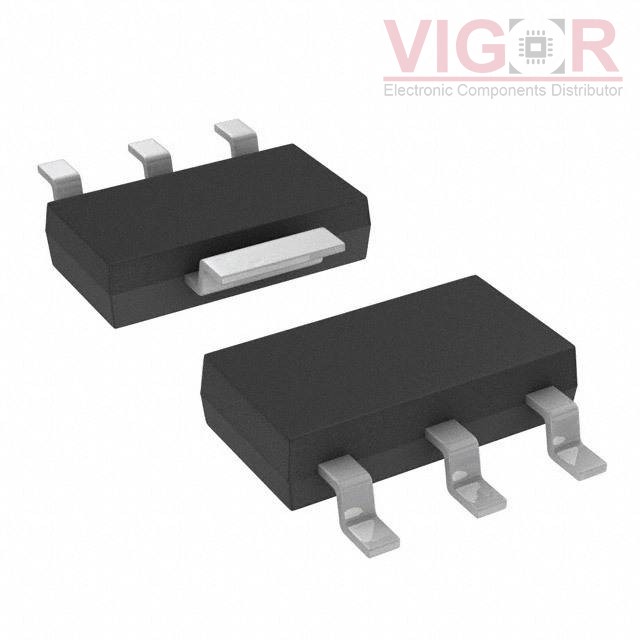

NCP1054ST136T3G

Part No :: NCP1054ST136T3G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3931799

Description: IC CONV PWM UVLO HV SOT223-4

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP1054ST136T3G PDF

Country of origin: -

Date code: -

NCP1054ST136T3G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	8.5 V
Voltage - Supply (Vcc/Vdd):	7.5V ~ 10V
Duty Cycle:	77%
Frequency - Switching:	136kHz
Power (Watts):	40 W
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	TO-261-4, TO-261AA
Supplier Device Package:	SOT-223
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
NCP1054ST100T3G Match 86%	Sanyo Semiconductor/ON Semiconductor IC CONV PWM UVLO HV SOT223-4	NCP1054ST136T3G vs NCP1054ST100T3G
NCP1053ST100T3G Match 86%	Sanyo Semiconductor/ON Semiconductor IC CONV PWM UVLO HV SOT223-4	NCP1054ST136T3G vs NCP1053ST100T3G
NCP1050ST100T3G Match 86%	Sanyo Semiconductor/ON Semiconductor IC CONV PWM UVLO HV SOT223-4	NCP1054ST136T3G vs NCP1050ST100T3G
NCP1050ST136T3G Match 100%	VIGOR SWITCHING REGULATOR, VOLTAGE-MOD	NCP1054ST136T3G vs NCP1050ST136T3G
NCP1051ST136T3G Match 100%	VIGOR SWITCHING REGULATOR, VOLTAGE-MOD	NCP1054ST136T3G vs NCP1051ST136T3G
NCP1051ST100T3G Match 86%	VIGOR SWITCHING REGULATOR, VOLTAGE-MOD	NCP1054ST136T3G vs NCP1051ST100T3G
