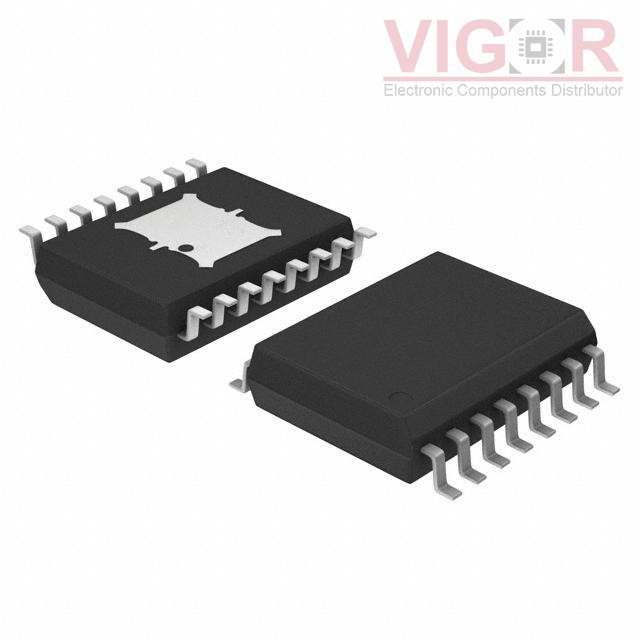

NCP1396BDR2G

Part No :: NCP1396BDR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3931859

Description: IC REG CTRLR ISO PWM VM 16-SOIC

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP1396BDR2G PDF

Country of origin: -

Date code: -

NCP1396BDR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Half-Bridge
Voltage - Start Up:	10.5 V
Voltage - Supply (Vcc/Vdd):	9.5V ~ 20V
Duty Cycle:	50%
Frequency - Switching:	50kHz ~ 500kHz
Power (Watts):	-
Fault Protection:	Over Temperature
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	16-SOIC (0.154", 3.90mm Width), 15 Leads
Supplier Device Package:	16-SOIC
Mounting Type:	Surface Mount
