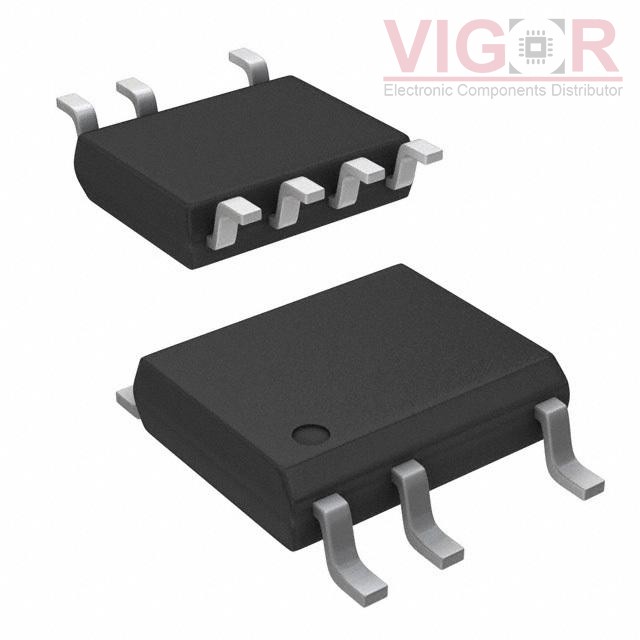

LNK563DG-TL

Part No :: LNK563DG-TL

Manufacturer: Power Integrations

VIGOR # :: 3931895

Description: IC OFFLINE SWIT OTP HV 8SOP

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: LNK563DG-TL PDF

Country of origin: -

Date code: -

LNK563DG-TL Specifications

Type	Description
Series:	LinkSwitch®-LP
Package:	Tape & Reel (TR)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	70%
Frequency - Switching:	83kHz
Power (Watts):	2.5 W
Fault Protection:	Current Limiting, Open Loop, Over Temperature, Short Circuit
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package:	SO-8C
Mounting Type:	Surface Mount
