TOP258MN

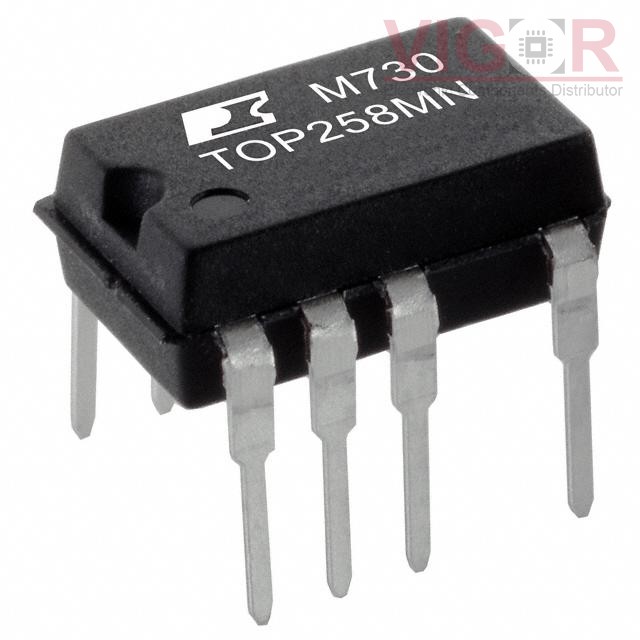

Image is for reference,
please contact us to get the real picture

Part No :: TOP258MN

Manufacturer: Power Integrations

Description: IC OFFLINE SWIT PROG OVP 10CSDIP

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: TOP258MN PDF

Availability: 1976 pieces

Unit Price: ~~$1.71000~~

Current price of TOP258MN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TOP258MN Specifications

Type	Description
Series:	TOPSwitch®-HX
Package:	Tube
Part Status:	Obsolete
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	-
Voltage - Supply (Vcc/Vdd):	-
Duty Cycle:	78%
Frequency - Switching:	66kHz
Power (Watts):	48 W
Fault Protection:	Current Limiting, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	10-SDIP (0.300", 7.62mm), 9 Leads
Supplier Device Package:	SDIP-10C
Mounting Type:	Through Hole
