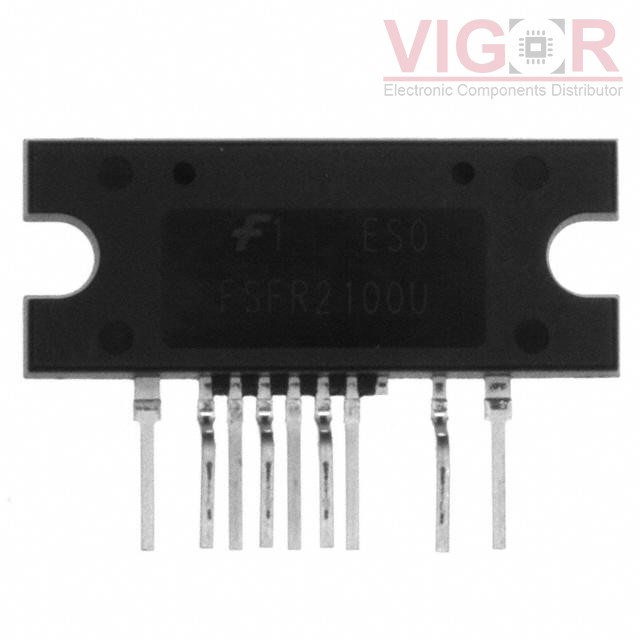

FSFR1800USL

Part No :: FSFR1800USL

Manufacturer: VIGOR

VIGOR # :: 3931963

Description: POWER SUPPLY SUPPORT CIRCUIT, FI

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: FSFR1800USL PDF

Country of origin: -

Date code: -

FSFR1800USL Specifications

Type	Description
Series:	FSFR-US
Package:	Bulk
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	500V
Topology:	Half-Bridge
Voltage - Start Up:	12.5 V
Voltage - Supply (Vcc/Vdd):	10V ~ 25V
Duty Cycle:	50%
Frequency - Switching:	Up to 300kHz
Power (Watts):	260 W
Fault Protection:	Current Limiting, Over Temperature, Over Voltage
Control Features:	Frequency Control
Operating Temperature:	-40°C ~ 130°C (TJ)
Package / Case:	10-SIP Module, 9 Leads, Formed Leads
Supplier Device Package:	9-SIP (L forming)
Mounting Type:	Through Hole

Alternative Products

Part Number	Manufacturer & Description	Compare
FSFR1800HSL Match 100%	Sanyo Semiconductor/ON Semiconductor IC FPS HALF BRIDGE RES CONV 9SIP	FSFR1800USL vs FSFR1800HSL
FSFR1600XSL Match 100%	VIGOR HALF BRIDGE BASED PERIPHERAL DRI	FSFR1800USL vs FSFR1600XSL
FSFR1700HSL Match 100%	VIGOR HALF BRIDGE BASED PERIPHERAL DRI	FSFR1800USL vs FSFR1700HSL
FSFR1800XSL Match 100%	Sanyo Semiconductor/ON Semiconductor IC FPS PWR SWITCH 260W 9-SIPL	FSFR1800USL vs FSFR1800XSL
FSFR1700USL Match 100%	VIGOR POWER SUPPLY SUPPORT CIRCUIT, FI	FSFR1800USL vs FSFR1700USL
FSFR2100XSL Match 100%	Sanyo Semiconductor/ON Semiconductor IC FPS PWR SWITCH 400W 9-SIPL	FSFR1800USL vs FSFR2100XSL

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 581

Shipped from

HK warehouse

Expected Shipping Date

Jul 30 - Aug 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.2300~~	~~$2.23~~
380	~~$2.2300~~	~~$847.40~~

Current price of FSFR1800USL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
