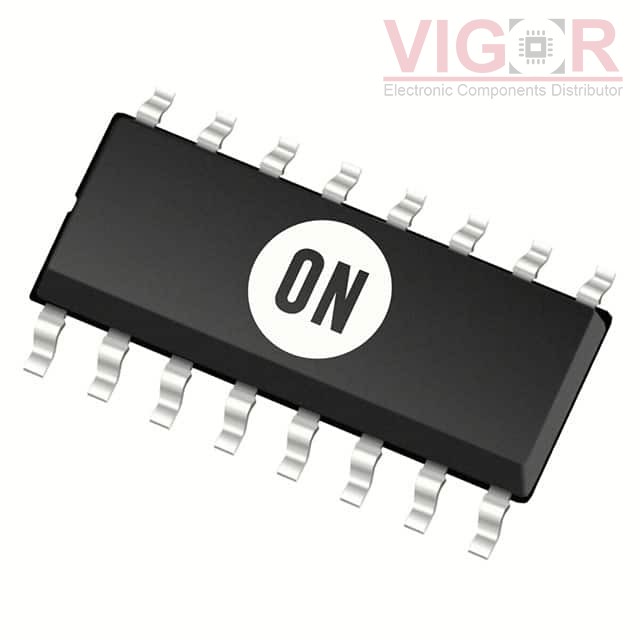

NCP13992AEDR2G

Part No :: NCP13992AEDR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3932026

Description: IC CTLR HALF BRIDGE RES 16SOIC

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP13992AEDR2G PDF

Country of origin: -

Date code: -

NCP13992AEDR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Half-Bridge
Voltage - Start Up:	9 V
Voltage - Supply (Vcc/Vdd):	9.5V ~ 20V
Duty Cycle:	50%
Frequency - Switching:	20kHz ~ 750kHz
Power (Watts):	-
Fault Protection:	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features:	EN, Frequency Control, Soft Start, Sync
Operating Temperature:	-50°C ~ 150°C (TJ)
Package / Case:	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package:	16-SOIC
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
NCP13992AGDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC CTLR HALF BRIDGE RES 16SOIC	NCP13992AEDR2G vs NCP13992AGDR2G
NCP13992AHDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC CTLR HALF BRIDGE RES 16SOIC	NCP13992AEDR2G vs NCP13992AHDR2G
NCP13992AJDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor HIGH PERF CURRENT MODE RESONANT	NCP13992AEDR2G vs NCP13992AJDR2G
NCP13992AFDR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC CTLR HALF BRIDGE RES 16SOIC	NCP13992AEDR2G vs NCP13992AFDR2G
NCP1399ARDR2G Match 76%	Sanyo Semiconductor/ON Semiconductor IC CTLR HALF BRIDGE RES 16SOIC	NCP13992AEDR2G vs NCP1399ARDR2G
NCP1399ASDR2G Match 76%	Sanyo Semiconductor/ON Semiconductor CURRENT MODE CONTROLLER	NCP13992AEDR2G vs NCP1399ASDR2G
