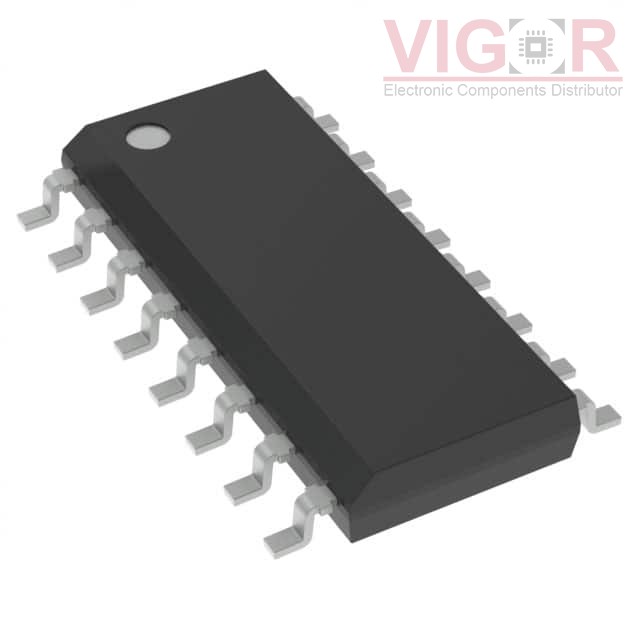

L6566BHTR

Part No :: L6566BHTR

Manufacturer: STMicroelectronics

VIGOR # :: 3932376

Description: IC CONT PWM PROG SMPS SO16N

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: L6566BHTR PDF

Country of origin: -

Date code: -

L6566BHTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Flyback
Voltage - Start Up:	14 V
Voltage - Supply (Vcc/Vdd):	8V ~ 23V
Duty Cycle:	75%
Frequency - Switching:	10kHz ~ 300kHz
Power (Watts):	-
Fault Protection:	Current Limiting, Over Load
Control Features:	Soft Start
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SO
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
L6566BTR Match 100%	STMicroelectronics IC CTRLR OVP OTP UVLO HV 16SOIC	L6566BHTR vs L6566BTR
L6566ATR Match 97%	STMicroelectronics IC CTRLR OVP UVLO 16SOIC	L6566BHTR vs L6566ATR
L6566B Match 100%	STMicroelectronics IC CTRLR OVP OTP UVLO HV 16SOIC	L6566BHTR vs L6566B
L6591TR Match 84%	STMicroelectronics IC CTRLR PWM PROG CM HV 16SOIC	L6566BHTR vs L6591TR
L6566A Match 97%	STMicroelectronics IC CTRLR OVP UVLO 16SOIC	L6566BHTR vs L6566A
L6566BH Match 100%	STMicroelectronics IC CTLR PWM MULTIMODE SMPS 16SOI	L6566BHTR vs L6566BH
