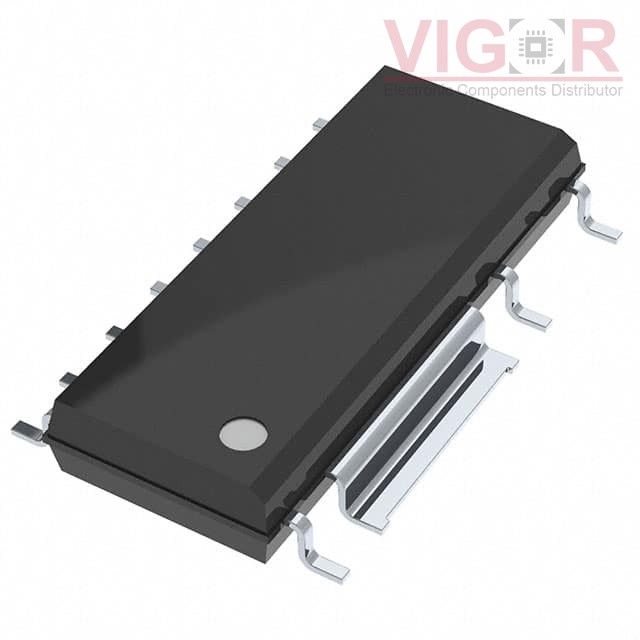

AP39303S16-13

Part No :: AP39303S16-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: ACDC PWM SWITCHER HSOP-16

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: AP39303S16-13 PDF

Availability: 4000 pieces

Unit Price: ~~$1.48000~~

Current price of AP39303S16-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP39303S16-13 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	700V
Topology:	Flyback
Voltage - Start Up:	15.8 V
Voltage - Supply (Vcc/Vdd):	10V ~ 28V
Duty Cycle:	-
Frequency - Switching:	24kHz ~ 120kHz
Power (Watts):	-
Fault Protection:	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Package / Case:	16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads
Supplier Device Package:	16-HSOP
Mounting Type:	Surface Mount

Please confirm the specifications of the products when ordering.
