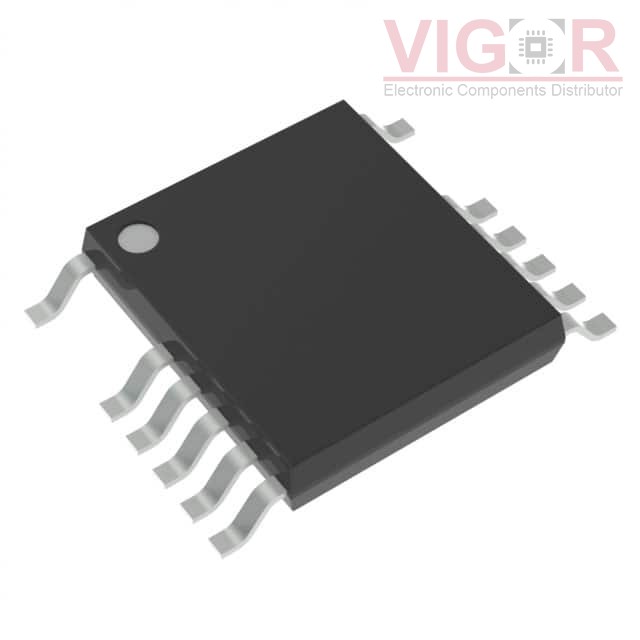

NCP1568G01DBR2G

Part No :: NCP1568G01DBR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4923619

Description: IC PWM CTLR FLYBACK 12TSSOP

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP1568G01DBR2G PDF

Country of origin: -

Date code: -

NCP1568G01DBR2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Isolation:	Isolated
Internal Switch(s):	Yes
Voltage - Breakdown:	-
Topology:	Flyback
Voltage - Start Up:	15.2 V
Voltage - Supply (Vcc/Vdd):	10V ~ 27V
Duty Cycle:	79%
Frequency - Switching:	100kHz ~ 1MHz
Power (Watts):	-
Fault Protection:	Current Limiting, Over Power, Over Temperature, Over Voltage, Short Circuit
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Package / Case:	16-TSSOP (0.173", 4.40mm Width), 12 Leads
Supplier Device Package:	16-TSSOP
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
NCP1568S02DBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC PWM CTLR FLYBACK 12TSSOP	NCP1568G01DBR2G vs NCP1568S02DBR2G
NCP1568B13ADBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor ACTIVE CLAMP FLYBACK	NCP1568G01DBR2G vs NCP1568B13ADBR2G
NCP1568B06ADBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor ACTIVE CLAMP FLYBACK	NCP1568G01DBR2G vs NCP1568B06ADBR2G
NCP1568G00DBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC PWM CTLR FLYBACK 12TSSOP	NCP1568G01DBR2G vs NCP1568G00DBR2G
NCP1568S01DBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC PWM CTLR FLYBACK 12TSSOP	NCP1568G01DBR2G vs NCP1568S01DBR2G
NCP1568S00DBR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC PWM CTLR FLYBACK 12TSSOP	NCP1568G01DBR2G vs NCP1568S00DBR2G
