NCP1236ED100R2G

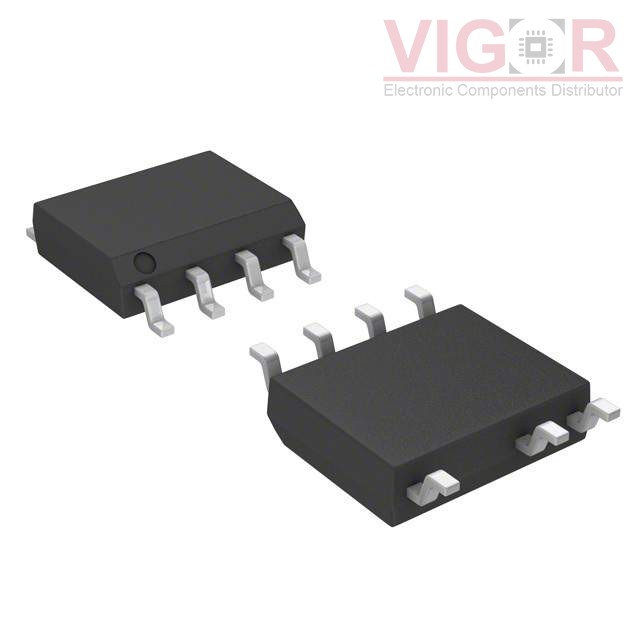

Part No :: NCP1236ED100R2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4923768

Description: IC CTLR CURR MODE 100KHZ 8SOIC

Catalog: PMIC - AC DC Converters, Offline Switchers

DataSheet: NCP1236ED100R2G PDF

Country of origin: -

Date code: -

NCP1236ED100R2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Isolation:	Isolated
Internal Switch(s):	No
Voltage - Breakdown:	-
Topology:	Flyback
Voltage - Start Up:	12 V
Voltage - Supply (Vcc/Vdd):	9.5V ~ 28V
Duty Cycle:	80%
Frequency - Switching:	100kHz
Power (Watts):	-
Fault Protection:	Over Load, Over Power, Over Temperature, Over Voltage
Control Features:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Package / Case:	8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package:	7-SOIC
Mounting Type:	Surface Mount

Alternative Products

Part Number	Manufacturer & Description	Compare
NCP12400BBHAA1DR2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC CTLR CURRENT MODE 8SOIC	NCP1236ED100R2G vs NCP12400BBHAA1DR2G
NCP1236DD65R2G Match 74%	Sanyo Semiconductor/ON Semiconductor IC CTLR CURR MODE 65KHZ 7SOIC	NCP1236ED100R2G vs NCP1236DD65R2G
NCP1236BD100R2G Match 100%	VIGOR SWITCHING CONTROLLER, CURRENT-MO	NCP1236ED100R2G vs NCP1236BD100R2G
NCP1240AD100R2G Match 100%	Sanyo Semiconductor/ON Semiconductor IC CTLR CURR MODE 100KHZ 8SOIC	NCP1236ED100R2G vs NCP1240AD100R2G
NCP12400CBHAA0DR2G Match 74%	Sanyo Semiconductor/ON Semiconductor IC CTLR CURRENT MODE 8SOIC	NCP1236ED100R2G vs NCP12400CBHAA0DR2G
NCP1236BD65R2G Match 74%	Sanyo Semiconductor/ON Semiconductor IC CTLR CURR MODE 65KHZ 7-SOIC	NCP1236ED100R2G vs NCP1236BD65R2G
