BQ24156AYFFR

Part No :: BQ24156AYFFR

Manufacturer: VIGOR

VIGOR # :: 3991180

Description: IC BATT CHG PWR SUP SUPPORT CIRC

Catalog: PMIC - Battery Chargers

DataSheet: BQ24156AYFFR PDF

Country of origin: -

Date code: -

BQ24156AYFFR Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Battery Chemistry:	Lithium Ion/Polymer
Number of Cells:	1
Current - Charging:	Constant - Programmable
Programmable Features:	Current, Timer
Fault Protection:	Over Temperature, Over Voltage
Charge Current - Max:	1.55A
Battery Pack Voltage:	4.44V (Max)
Voltage - Supply (Max):	9V
Interface:	I²C
Operating Temperature:	-30°C ~ 85°C (TA)
Mounting Type:	Surface Mount

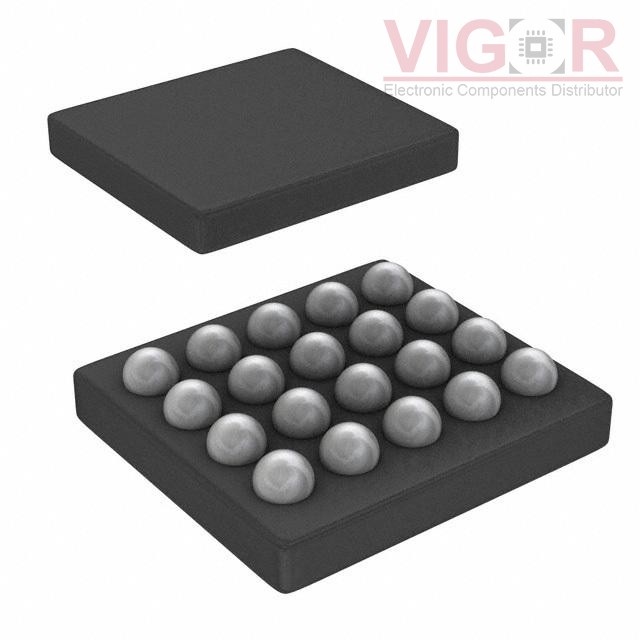

Package / Case:	20-UFBGA, DSBGA
Supplier Device Package:	20-DSBGA (2.1x2)

Alternative Products

Part Number	Manufacturer & Description	Compare
BQ24157YFFR Match 100%	Texas Instruments IC BATT CHG LI-ION 1CELL 20DSBGA	BQ24156AYFFR vs BQ24157YFFR
BQ24159YFFR Match 100%	VIGOR IC BATT CHG LI-ION 1CELL 20DSBGA	BQ24156AYFFR vs BQ24159YFFR
BQ24157YFFT Match 100%	Texas Instruments IC BATT CHG LI-ION 1CELL 20DSBGA	BQ24156AYFFR vs BQ24157YFFT
BQ24153AYFFR Match 84%	VIGOR IC BATT CHG PWR SUP SUPPORT CIRC	BQ24156AYFFR vs BQ24153AYFFR
BQ24157SYFFT Match 84%	Texas Instruments IC BATT CHG LI-ION 1CELL 20DSBGA	BQ24156AYFFR vs BQ24157SYFFT
BQ24153YFFT Match 84%	VIGOR IC BATT CHG PWR SUP SUPPORT CIRC	BQ24156AYFFR vs BQ24153YFFT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 75163

Shipped from

HK warehouse

Expected Shipping Date

Aug 14 - Aug 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.4500~~	~~$3.45~~
3000	~~$1.3433~~	~~$4 029.90~~

Current price of BQ24156AYFFR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
