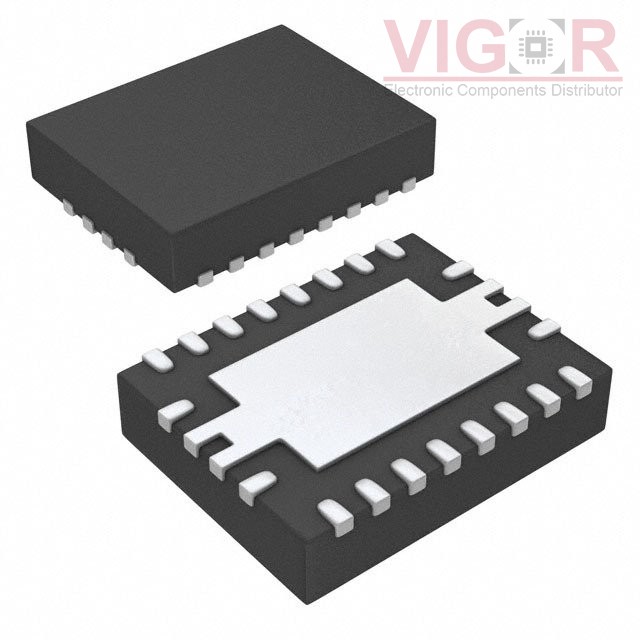

BQ24100RHLR

Part No :: BQ24100RHLR

Manufacturer: Texas Instruments

VIGOR # :: 3992207

Description: IC BATT CHG LI-ION 1CELL 20VQFN

Catalog: PMIC - Battery Chargers

DataSheet: BQ24100RHLR PDF

Country of origin: -

Date code: -

BQ24100RHLR Specifications

Type	Description
Series:	bqSWITCHER™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Battery Chemistry:	Lithium Ion/Polymer
Number of Cells:	1
Current - Charging:	Constant - Programmable
Programmable Features:	Current, Timer
Fault Protection:	Over Temperature, Over Voltage
Charge Current - Max:	2A
Battery Pack Voltage:	4.2V
Voltage - Supply (Max):	16V
Interface:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-VFQFN Exposed Pad
Supplier Device Package:	20-VQFN (3.5x4.5)

Alternative Products

Part Number	Manufacturer & Description	Compare
BQ24113RHLRG4 Match 100%	Texas Instruments IC BATT CHG LI-ION 1-2CEL 20VQFN	BQ24100RHLR vs BQ24113RHLRG4
BQ24125RHLT Match 100%	Texas Instruments IC BATT CHG LI-ION 1-3CEL 20VQFN	BQ24100RHLR vs BQ24125RHLT
BQ24113ARHLR Match 100%	Texas Instruments IC BATT CHG LI-ION 1-2CEL 20VQFN	BQ24100RHLR vs BQ24113ARHLR
BQ24108RHLRG4 Match 100%	Texas Instruments IC BATT CHG LI-ION 1CELL 20VQFN	BQ24100RHLR vs BQ24108RHLRG4
BQ24123RHLRG4 Match 100%	Texas Instruments IC BATT CHG LI-ION 1-3CEL 20VQFN	BQ24100RHLR vs BQ24123RHLRG4
BQ24123RHLR Match 100%	Texas Instruments IC BATT CHG LI-ION 1-3CEL 20VQFN	BQ24100RHLR vs BQ24123RHLR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 11040

Shipped from

HK warehouse

Expected Shipping Date

Sep 17 - Sep 21 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.9400~~	~~$4.94~~
3000	~~$2.3408~~	~~$7 022.40~~

Current price of BQ24100RHLR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

BQ2954SNTR

IC BATT FAST CHG LI-ION 16SOIC

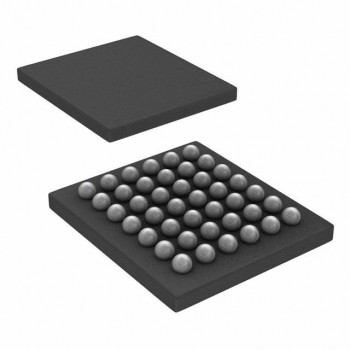

BQ25898DYFFT
