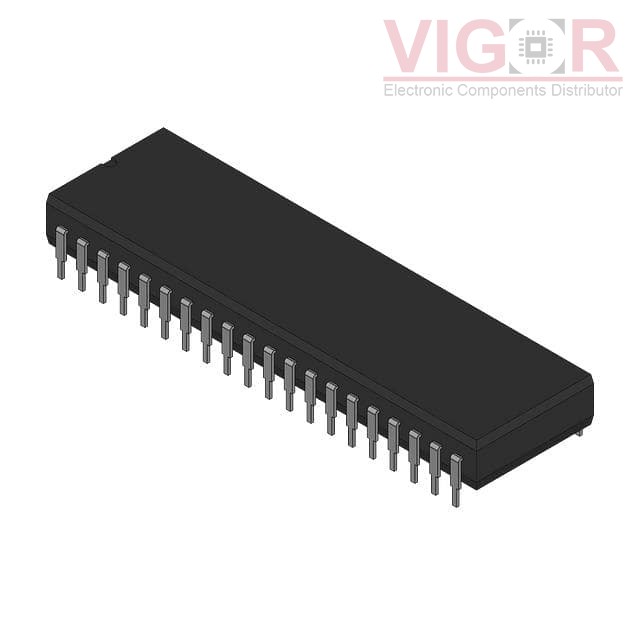

MAX6954APL

Part No :: MAX6954APL

Manufacturer: VIGOR

VIGOR # :: 3877547

Description: LED DISPLAY DRIVER

Catalog: PMIC - Display Drivers

DataSheet: MAX6954APL PDF

Country of origin: -

Date code: -

MAX6954APL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Display Type:	LED
Configuration:	7, 14, 16 Segment, Common Cathode
Interface:	4-Wire Serial
Digits or Characters:	8 Digits, 16 Digits
Current - Supply:	22 mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	40-DIP (0.600", 15.24mm)
Supplier Device Package:	40-PDIP
