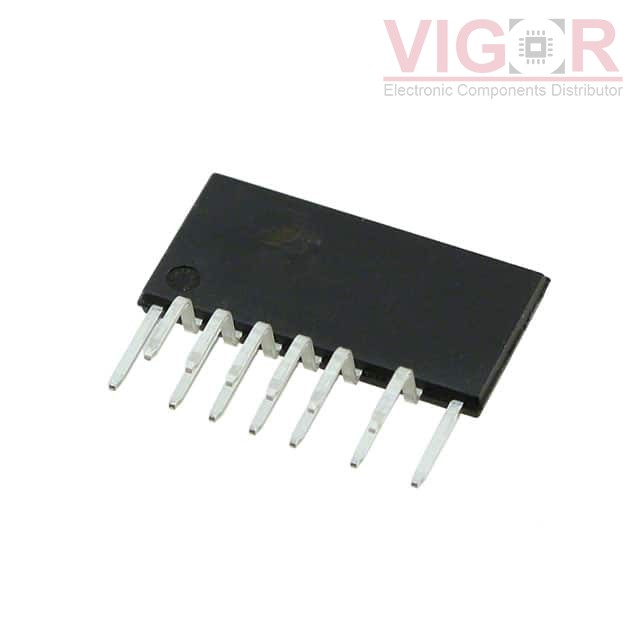

LCS701HG

Part No :: LCS701HG

Manufacturer: Power Integrations

Description: IC LLC CTRL MFET 170W ESIP16C

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: LCS701HG PDF

Availability: 303 pieces

Unit Price: ~~$4.61000~~

Current price of LCS701HG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LCS701HG Specifications

Type	Description
Series:	HiperLCS™
Package:	Tube
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	General Purpose
Interface:	On/Off
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	1Ohm
Current - Output / Channel:	-
Current - Peak Output:	7.7A
Voltage - Supply:	11.4V ~ 15V
Voltage - Load:	11.4V ~ 15V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Auto Restart, Slew Rate Controlled
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type:	Through Hole
Package / Case:	16-SSIP, 13 Leads, Exposed Pad, Formed Leads
Supplier Device Package:	16-ESIP

Please confirm the specifications of the products when ordering.
