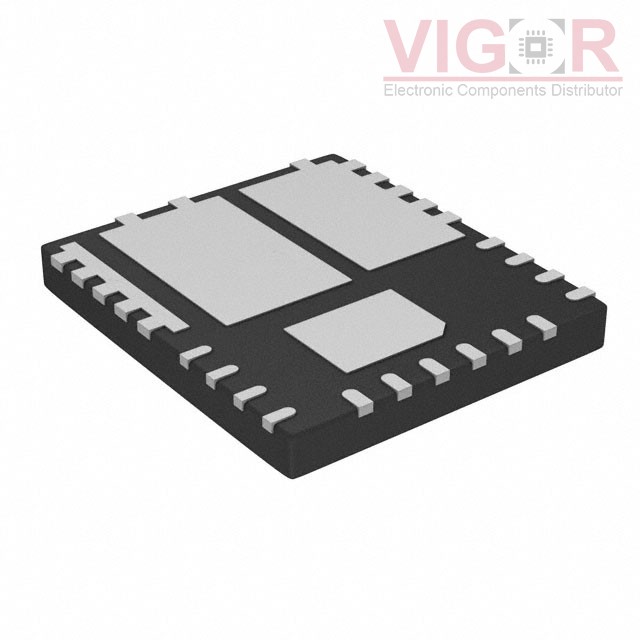

IRSM005-800MHTR

Part No :: IRSM005-800MHTR

Manufacturer: IR (Infineon Technologies)

Description: IC GATE DRIVER 40V QFN

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: IRSM005-800MHTR PDF

Availability: 177 pieces

Unit Price: ~~$3.38000~~

Current price of IRSM005-800MHTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRSM005-800MHTR Specifications

Type	Description
Series:	µIPM™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface:	Logic
Load Type:	Inductive, Capacitive
Technology:	Power MOSFET
Rds On (Typ):	2.7mOhm
Current - Output / Channel:	80A
Current - Peak Output:	-
Voltage - Supply:	10V ~ 20V
Voltage - Load:	40V (Max)
Operating Temperature:	150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Surface Mount
Package / Case:	27-PowerVQFN
Supplier Device Package:	27-PQFN (7x8)

Please confirm the specifications of the products when ordering.
