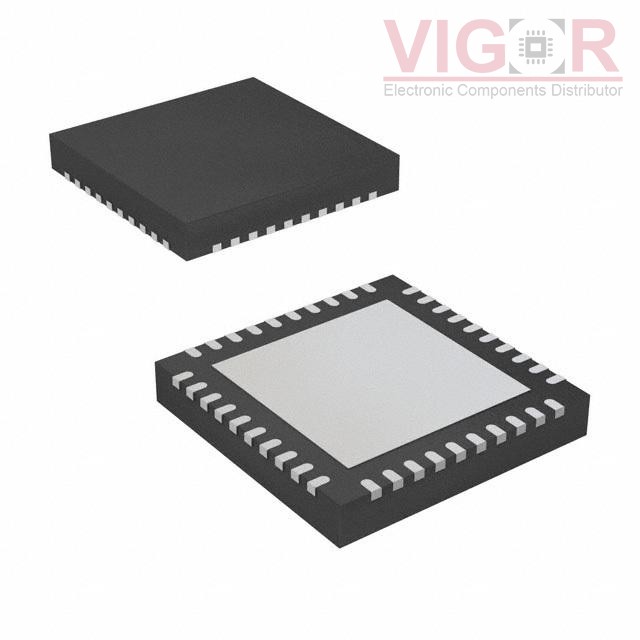

MP6536DU-LF-P

Part No :: MP6536DU-LF-P

Manufacturer: MPS (Monolithic Power Systems)

VIGOR # :: 3923800

Description: 26V, 5.5A, 3-CHANNEL HALF-BRIDGE

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: MP6536DU-LF-P PDF

Country of origin: -

Date code: -

MP6536DU-LF-P Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Half Bridge (3)
Applications:	DC Motors, General Purpose
Interface:	Logic, PWM
Load Type:	Capacitive
Technology:	Power MOSFET
Rds On (Typ):	140mOhm LS + HS
Current - Output / Channel:	5.5A
Current - Peak Output:	5.5A
Voltage - Supply:	5V ~ 26V
Voltage - Load:	5V ~ 26V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	40-VFQFN Exposed Pad
Supplier Device Package:	40-QFN (5x5)
