NCV7726DQBR2G

Part No :: NCV7726DQBR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3923818

Description: AUTOMOTIVE DRIVER

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: NCV7726DQBR2G PDF

Country of origin: -

Date code: -

NCV7726DQBR2G Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (12)
Applications:	DC Motors, General Purpose
Interface:	Logic, SPI
Load Type:	Inductive
Technology:	NMOS
Rds On (Typ):	850mOhm LS, 850mOhm HS
Current - Output / Channel:	500mA
Current - Peak Output:	1.1A
Voltage - Supply:	3.15V ~ 5.25V
Voltage - Load:	5.5V ~ 32V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Charge Pump
Fault Protection:	Over Current, Over Temperature, Over Voltage, UVLO
Mounting Type:	Surface Mount

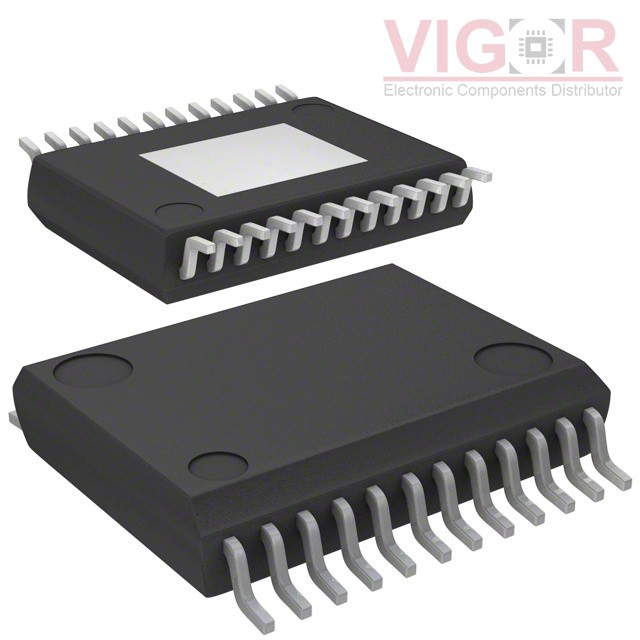

Package / Case:	24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	24-SSOP-NB-EP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 190

Shipped from

HK warehouse

Expected Shipping Date

Jan 10 - Jan 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.06~~	~~$5.06~~

Current price of NCV7726DQBR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
