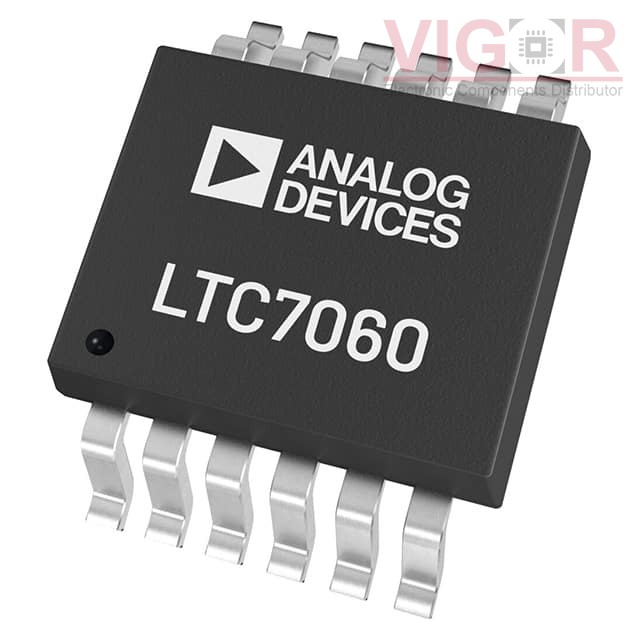

LTC7060IMSE#WTRPBF

Part No :: LTC7060IMSE#WTRPBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: 100V HALF BRIDGE DRIVER W/ FLOAT

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: LTC7060IMSE#WTRPBF PDF

Availability: 5305 pieces

Unit Price: ~~$1.92000~~

Current price of LTC7060IMSE#WTRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LTC7060IMSE#WTRPBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	General Purpose
Interface:	Logic, PWM, SPI
Load Type:	Inductive, Capacitive, Resistive
Technology:	Power MOSFET
Rds On (Typ):	1.5Ohm LS, 1.5Ohm HS
Current - Output / Channel:	6A
Current - Peak Output:	6A
Voltage - Supply:	6V ~ 14V
Voltage - Load:	6V ~ 14V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	12-MSOP-EP

Please confirm the specifications of the products when ordering.
