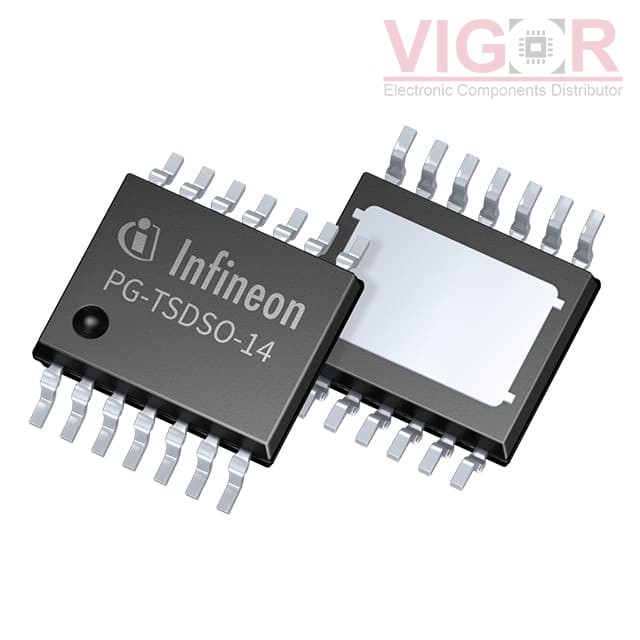

TLE94104EPXUMA1

Part No :: TLE94104EPXUMA1

Manufacturer: IR (Infineon Technologies)

Description: BODY BRIDGES

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: TLE94104EPXUMA1 PDF

Availability: 2971 pieces

Unit Price: ~~$2.12000~~

Current price of TLE94104EPXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE94104EPXUMA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (4)
Applications:	DC Motors, General Purpose
Interface:	SPI
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	825mOhm LS, 825mOhm HS
Current - Output / Channel:	2A
Current - Peak Output:	-
Voltage - Supply:	3V ~ 5.5V
Voltage - Load:	5.5V ~ 20V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	PG-TSDSO-14

Please confirm the specifications of the products when ordering.
