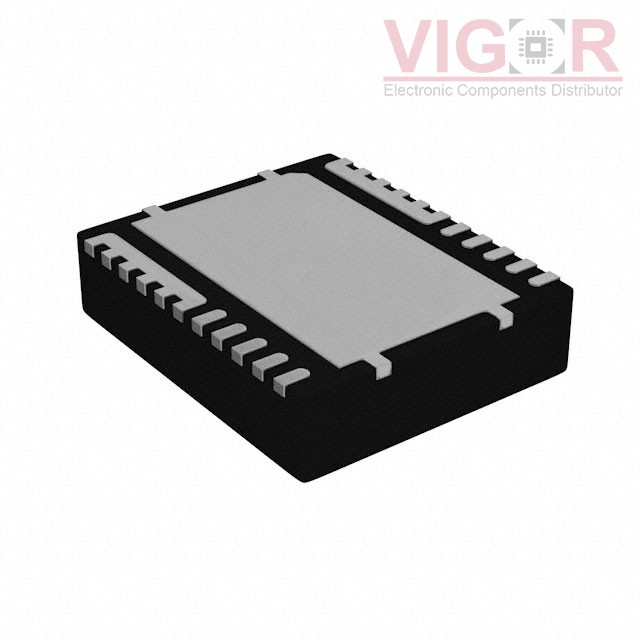

CSD95378BQ5MT

Part No :: CSD95378BQ5MT

Manufacturer: VIGOR

Description: CSD95378BQ5M 60A SYNCHRONOUS BUC

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: CSD95378BQ5MT PDF

Availability: 479 pieces

Unit Price: ~~$2.80000~~

Current price of CSD95378BQ5MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD95378BQ5MT Specifications

Type	Description
Series:	NexFET™
Package:	Bulk
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	-
Current - Output / Channel:	60A
Current - Peak Output:	90A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	4.5V ~ 16V
Operating Temperature:	-55°C ~ 150°C (TJ)
Features:	Bootstrap Circuit, Status Flag
Fault Protection:	Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	12-Power LFDFN
Supplier Device Package:	12-LSON (5x6)
