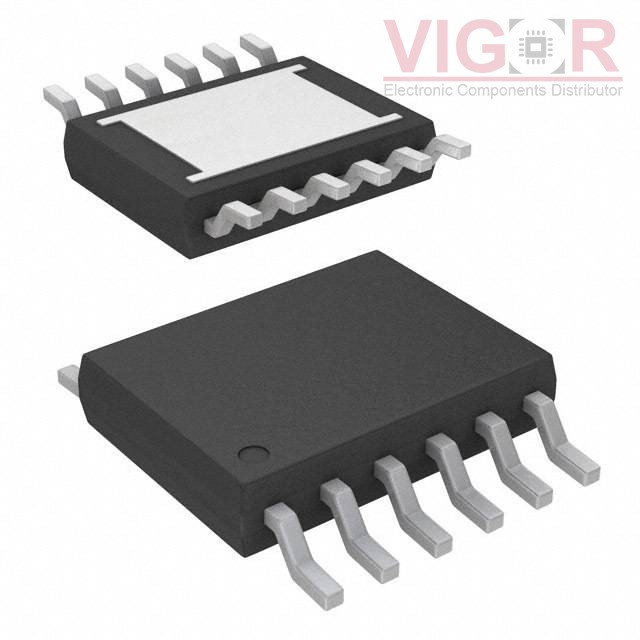

LTC7060JMSE#WPBF

Part No :: LTC7060JMSE#WPBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3923885

Description: 100V HALF BRIDGE DRIVER W/ FLOAT

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: LTC7060JMSE#WPBF PDF

Country of origin: -

Date code: -

LTC7060JMSE#WPBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	General Purpose
Interface:	PWM
Load Type:	Capacitive
Technology:	Power MOSFET
Rds On (Typ):	1.5Ohm LS, 1.5mOhm HS
Current - Output / Channel:	-
Current - Peak Output:	6A
Voltage - Supply:	6V ~ 14V
Voltage - Load:	6V ~ 14V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	12-TSSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	12-MSOP-EP
