BTN7970B

Part No :: BTN7970B

Manufacturer: VIGOR

VIGOR # :: 3923899

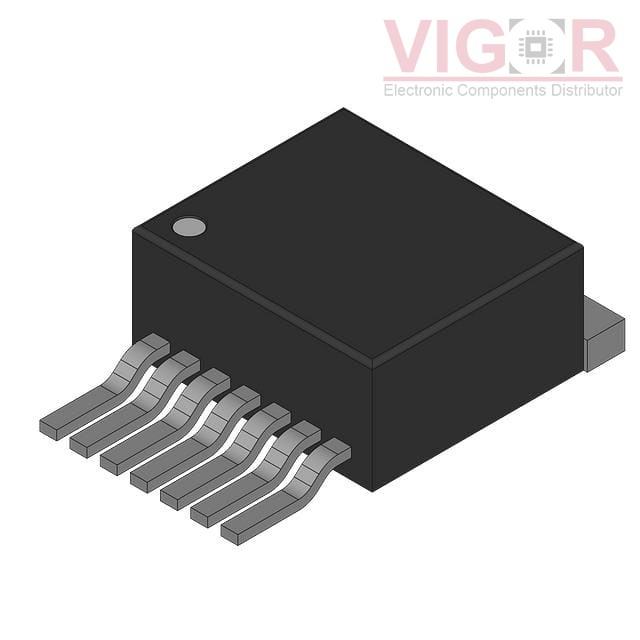

Description: BTN7970 - INTEGRATED HALF-BRIDGE

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BTN7970B PDF

Country of origin: -

Date code: -

BTN7970B Specifications

Type	Description
Series:	NovalithIC™
Package:	Bulk
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	General Purpose
Interface:	Logic, PWM
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	9mOhm LS, 7mOhm HS
Current - Output / Channel:	70A
Current - Peak Output:	70A
Voltage - Supply:	8V ~ 18V
Voltage - Load:	8V ~ 18V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Charge Pump, Status Flag
Fault Protection:	Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting Type:	Surface Mount
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package:	PG-TO263-7-1
