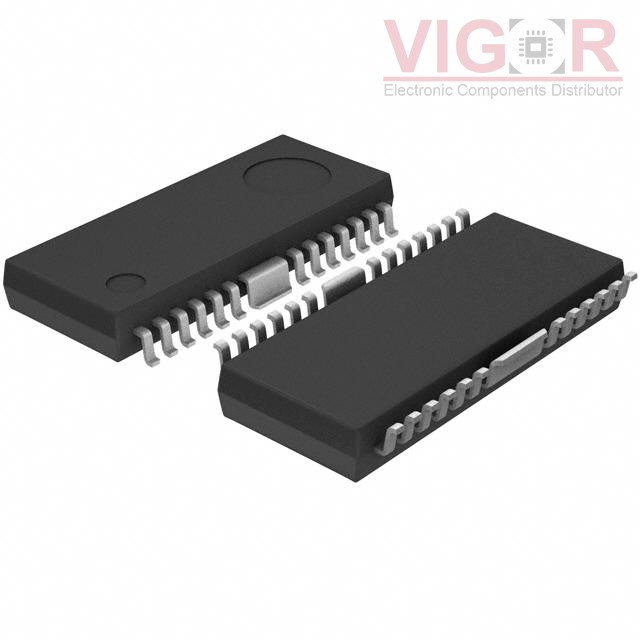

BD6225FP-E2

Part No :: BD6225FP-E2

Manufacturer: ROHM Semiconductor

Description: IC MOTOR DRIVER PAR 25HSOP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BD6225FP-E2 PDF

Availability: 2417 pieces

Unit Price: ~~$4.61000~~

Current price of BD6225FP-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BD6225FP-E2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (4)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	1.5Ohm
Current - Output / Channel:	500mA
Current - Peak Output:	-
Voltage - Supply:	6V ~ 15V
Voltage - Load:	6V ~ 15V
Operating Temperature:	-40°C ~ 85°C (TA)
Features:	-
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, UVLO
Mounting Type:	Surface Mount
Package / Case:	25-SOP (0.213", 5.40mm Width) + 2 Heat Tabs
Supplier Device Package:	25-HSOP

Please confirm the specifications of the products when ordering.
