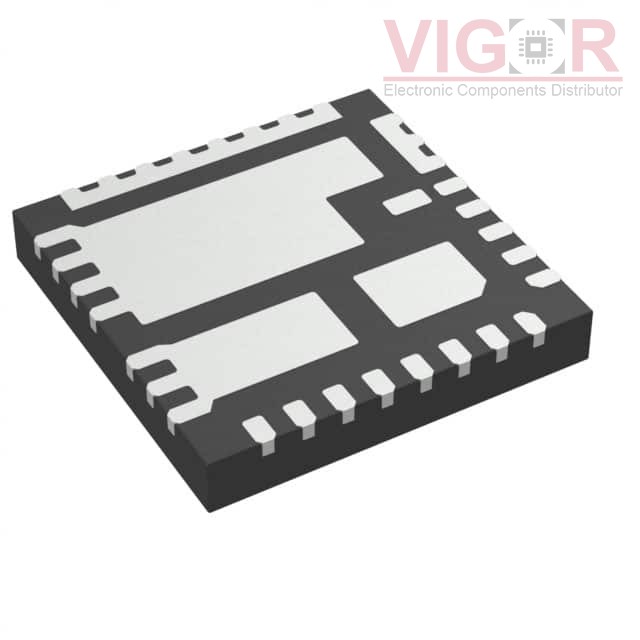

FDMF5833-F085

Part No :: FDMF5833-F085

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IC MOD SPS POWER STAGE 31PQFN

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: FDMF5833-F085 PDF

Availability: 210 pieces

Unit Price: ~~$3.65000~~

Current price of FDMF5833-F085 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMF5833-F085 Specifications

Type	Description
Series:	PowerTrench®, SyncFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	UMOS
Rds On (Typ):	470mOhm LS, 680mOhm HS
Current - Output / Channel:	50A
Current - Peak Output:	7A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	4.5V ~ 24V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit, Latch Function, Status Flag
Fault Protection:	Over Temperature, UVLO
Mounting Type:	Surface Mount
Package / Case:	31-PowerWFQFN
Supplier Device Package:	31-PQFN (5x5)

Please confirm the specifications of the products when ordering.
