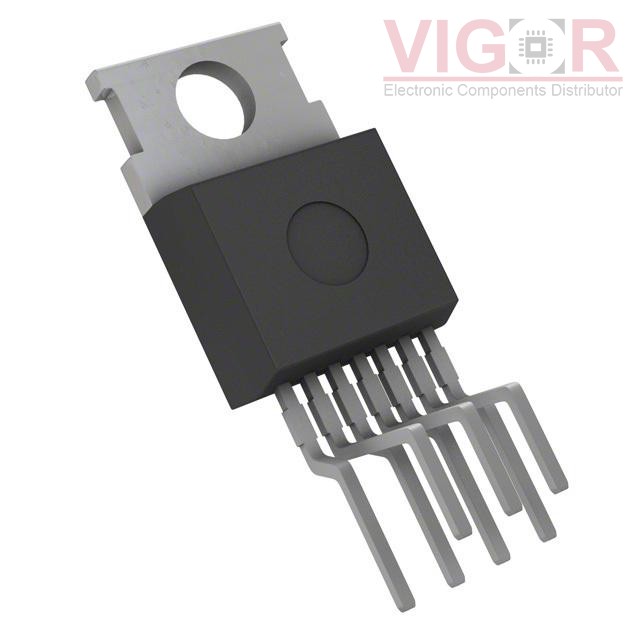

TDA21201-S7

Part No :: TDA21201-S7

Manufacturer: VIGOR

Description: PWM PERIPHERAL DRIVER, 30A

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: TDA21201-S7 PDF

Availability: 358 pieces

Unit Price: ~~$1.99000~~

Current price of TDA21201-S7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TDA21201-S7 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	4.8mOhm LS, 13.3mOhm HS
Current - Output / Channel:	30A
Current - Peak Output:	-
Voltage - Supply:	9V ~ 15V
Voltage - Load:	9V ~ 15V
Operating Temperature:	-25°C ~ 125°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	Over Temperature, Shoot-Through, UVLO
Mounting Type:	Through Hole
Package / Case:	TO-220-7
Supplier Device Package:	P-TO220-7-230

Please confirm the specifications of the products when ordering.
