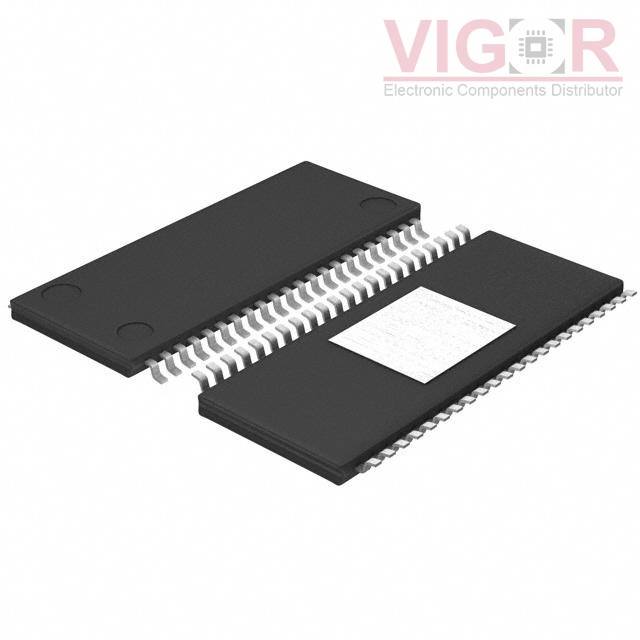

BD7776ARFS-E2

Part No :: BD7776ARFS-E2

Manufacturer: ROHM Semiconductor

Description: IC MOTOR DRIVER PAR 44-HTSSOP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BD7776ARFS-E2 PDF

Availability: 1965 pieces

Unit Price: ~~$2.83500~~

Current price of BD7776ARFS-E2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BD7776ARFS-E2 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Output Configuration:	Half Bridge (15)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	-
Rds On (Typ):	-
Current - Output / Channel:	500mA, 1A
Current - Peak Output:	-
Voltage - Supply:	10.8V ~ 13.2V
Voltage - Load:	4.3V ~ 13.2V
Operating Temperature:	-20°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Current Limiting, Over Temperature
Mounting Type:	Surface Mount
Package / Case:	44-VSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:	44-HTSSOP-A
