LV11961HA-AH

LV11961HA-AH

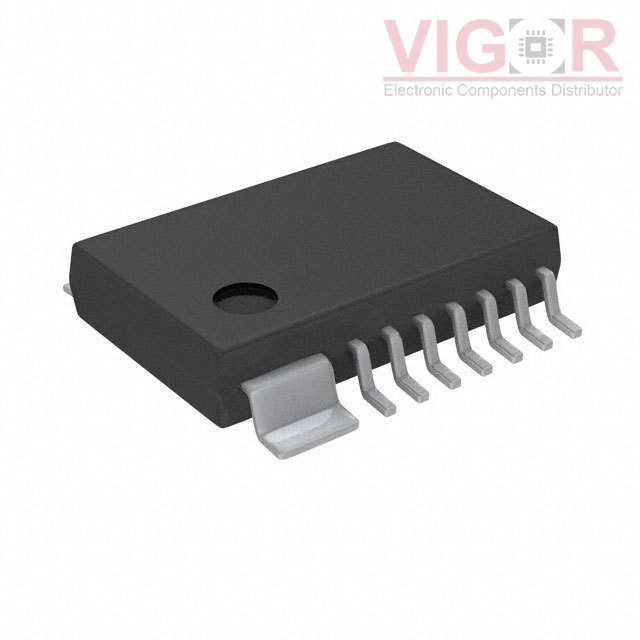

Image is for reference,
please contact us to get the real picture

Part No :

LV11961HA-AH

Manufacturer
VIGOR
Description
BRUSHLESS DC MOTOR CONTROLLER, 1
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Oct 06 - Oct 10 2025
DataSheet
LV11961HA-AH PDF
Availability
443298 pieces
Unit Price
$1.25000

Current price of LV11961HA-AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LV11961HA-AH Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:Bi-CMOS
Rds On (Typ):-
Current - Output / Channel:1A
Current - Peak Output:-
Voltage - Supply:3.6V ~ 16V
Voltage - Load:3.6V ~ 16V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Slew Rate Controlled
Fault Protection:Over Temperature, Over Voltage, UVLO
Mounting Type:Surface Mount
Package / Case:14-LSSOP (0.173", 4.40mm Width) + 2 Heat Tabs
Supplier Device Package:14-HSSOP
