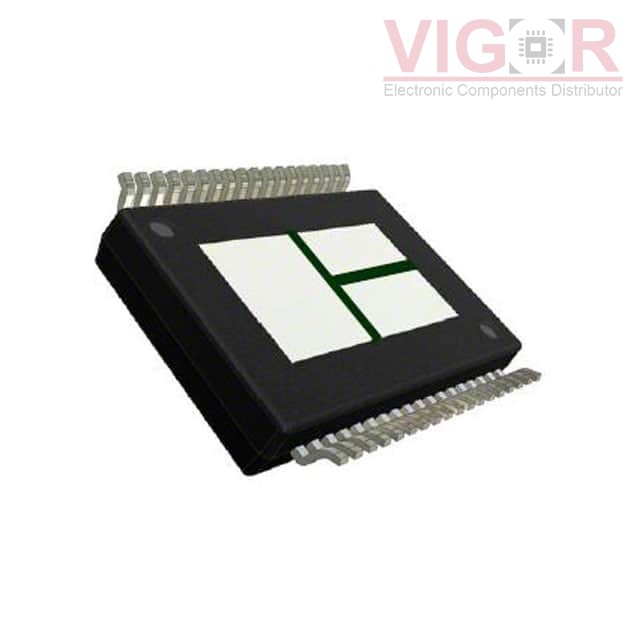

VNH7013XP-E

Part No :: VNH7013XP-E

Manufacturer: STMicroelectronics

Description: IC MOTOR DRIVER PAR 36POWERSSO

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: VNH7013XP-E PDF

Availability: 7895 pieces

Unit Price: ~~$2.84550~~

Current price of VNH7013XP-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VNH7013XP-E Specifications

Type	Description
Series:	VIPower™
Package:	Tube
Part Status:	Active
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	7.3mOhm LS, 5.7mOhm HS
Current - Output / Channel:	40A
Current - Peak Output:	-
Voltage - Supply:	72V (Max)
Voltage - Load:	-
Operating Temperature:	-40°C ~ 175°C (TJ)
Features:	-
Fault Protection:	Over Temperature
Mounting Type:	Surface Mount
Package / Case:	36-PowerBFSOP (0.295", 7.50mm Width)
Supplier Device Package:	PowerSSO-36
