IRSM505-015DA

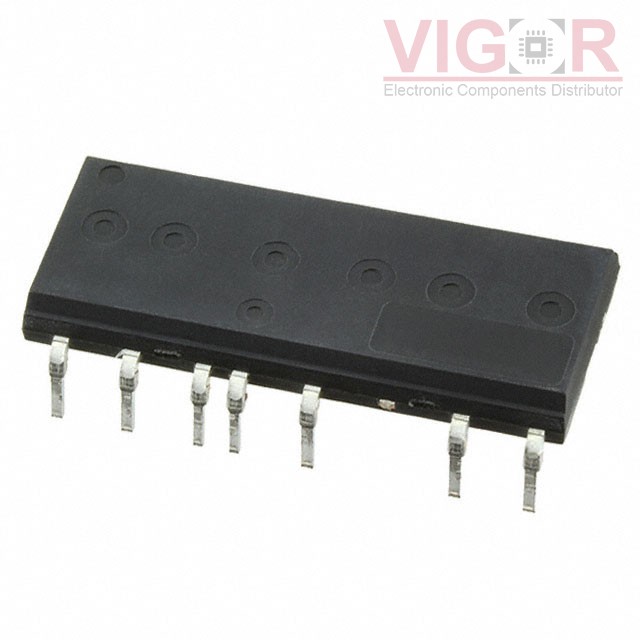

Part No :: IRSM505-015DA

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3924010

Description: IC MOTOR DRIVER 600V 23DIP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: IRSM505-015DA PDF

Country of origin: -

Date code: -

IRSM505-015DA Specifications

Type	Description
Series:	µIPM™-DIP
Package:	Tube
Part Status:	Active
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	UMOS
Rds On (Typ):	5Ohm
Current - Output / Channel:	1.2A
Current - Peak Output:	9A
Voltage - Supply:	13.5V ~ 16.5V
Voltage - Load:	400V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Through Hole
Package / Case:	23-DIP Module
Supplier Device Package:	23-DIP
