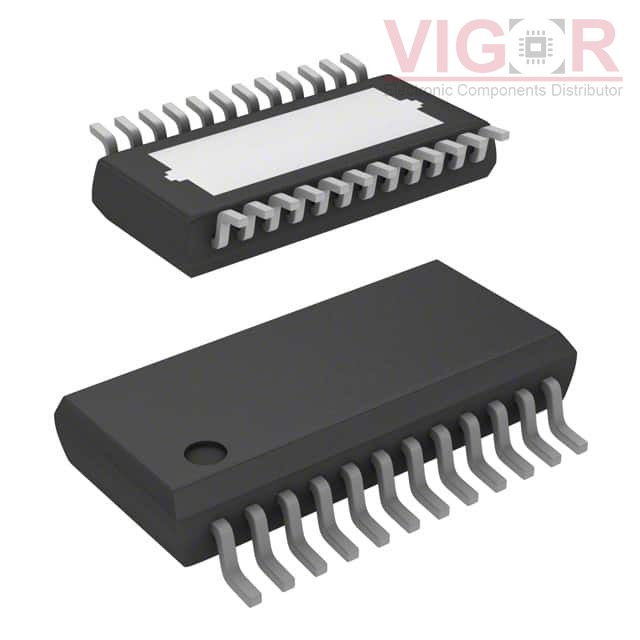

TLE84106ELXUMA1

Part No :: TLE84106ELXUMA1

Manufacturer: VIGOR

Description: HALF BRIDGE BASED PERIPHERAL DRI

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: TLE84106ELXUMA1 PDF

Availability: 4236 pieces

Unit Price: ~~$2.18000~~

Current price of TLE84106ELXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLE84106ELXUMA1 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Configuration:	Half Bridge (6)
Applications:	DC Motors, General Purpose
Interface:	SPI
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	800mOhm LS, 800mOhm HS
Current - Output / Channel:	-
Current - Peak Output:	-
Voltage - Supply:	3V ~ 5.5V
Voltage - Load:	7V ~ 18V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	PG-SSOP-24-4

Please confirm the specifications of the products when ordering.
