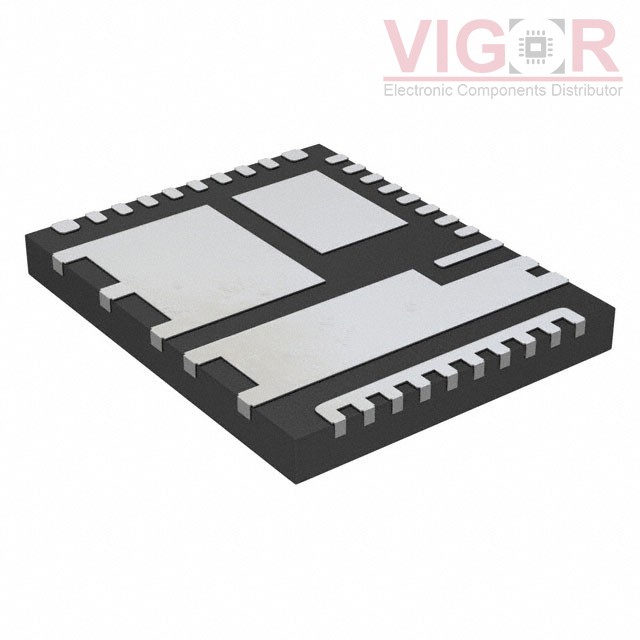

FDMF2011

Part No :: FDMF2011

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MCM FAN7842 DRIVER AND MV5 100V

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: FDMF2011 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of FDMF2011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMF2011 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	DC Motors, General Purpose
Interface:	PWM
Load Type:	Inductive, Capacitive
Technology:	Power MOSFET
Rds On (Typ):	7.3mOhm LS, 7.7mOhm HS
Current - Output / Channel:	20A
Current - Peak Output:	-
Voltage - Supply:	10V ~ 20V
Voltage - Load:	3V ~ 80V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Surface Mount
Package / Case:	36-SMD Module
Supplier Device Package:	36-PQFN (7.5x6)

Please confirm the specifications of the products when ordering.
