IRSM515-044PA

IRSM515-044PA

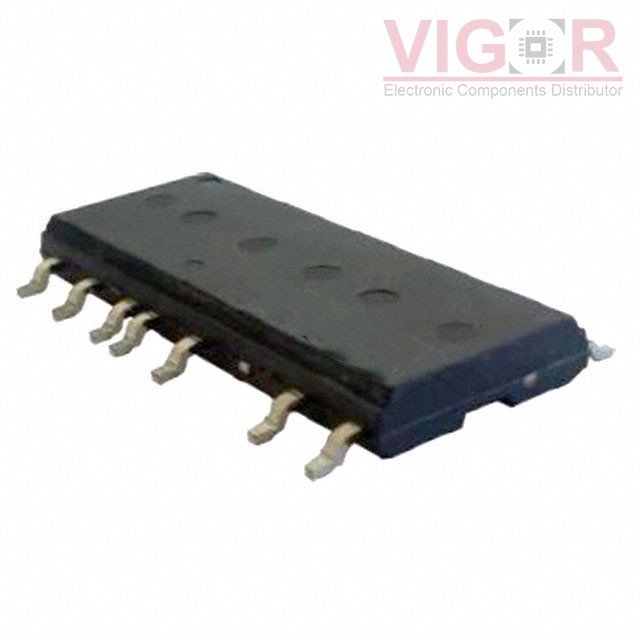

Image is for reference,
please contact us to get the real picture

Part No :

IRSM515-044PA

Manufacturer
VIGOR
Description
AC MOTOR CONTROLLER
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Oct 09 - Oct 13 2025
DataSheet
IRSM515-044PA PDF
Availability
311 pieces
Unit Price
$3.60000

Current price of IRSM515-044PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRSM515-044PA Specifications
Type Description
Series:µIPM™-DIP
Package:Bulk
Part Status:Active
Output Configuration:Half Bridge (3)
Applications:AC Motors
Interface:Logic
Load Type:Inductive
Technology:UMOS
Rds On (Typ):800mOhm
Current - Output / Channel:3A
Current - Peak Output:15A
Voltage - Supply:13.5V ~ 16.5V
Voltage - Load:200V (Max)
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:UVLO
Mounting Type:Surface Mount
Package / Case:32-PowerSMD Module, 23 Leads
Supplier Device Package:23-SOP
