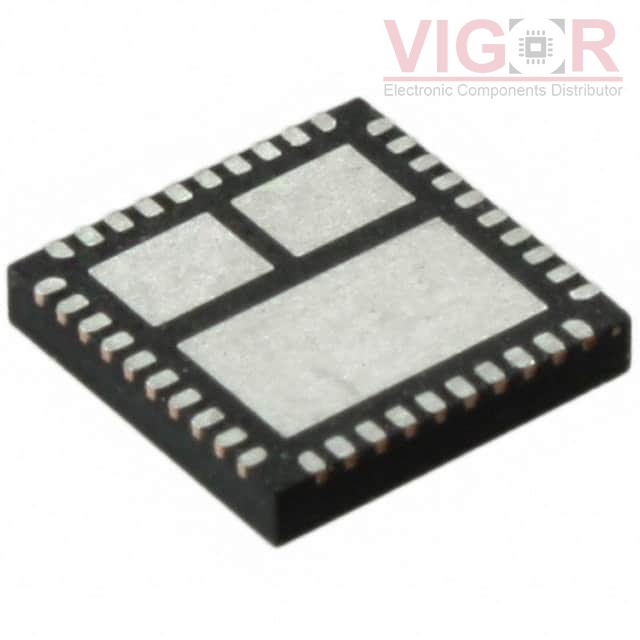

FDMF6820A

Part No :: FDMF6820A

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3924129

Description: MODULE DRMOS 60A 40-PQFN

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: FDMF6820A PDF

Country of origin: -

Date code: -

FDMF6820A Specifications

Type	Description
Series:	XS™ DrMOS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	DrMOS
Rds On (Typ):	1Ohm LS, 1Ohm HS
Current - Output / Channel:	60A
Current - Peak Output:	-
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	3V ~ 16V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit, Status Flag
Fault Protection:	Over Temperature, Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	40-PowerTFQFN
Supplier Device Package:	40-PQFN (6x6)

Alternative Products

Part Number	Manufacturer & Description	Compare
FDMF6824A Match 100%	Sanyo Semiconductor/ON Semiconductor MOD DRMOS HIGH PERF 40QFN	FDMF6820A vs FDMF6824A
FDMF6823A Match 100%	VIGOR HALF BRIDGE BASED MOSFET DRIVER,	FDMF6820A vs FDMF6823A
FDMF6823C Match 74%	Sanyo Semiconductor/ON Semiconductor MODULE DRMOS 50A 40-PQFN	FDMF6820A vs FDMF6823C
FDMF6824B Match 87%	Sanyo Semiconductor/ON Semiconductor MODULE DRMOS 55A 40-PQFN	FDMF6820A vs FDMF6824B
FDMF6820B Match 87%	VIGOR HALF BRIDGE BASED MOSFET DRIVER	FDMF6820A vs FDMF6820B
FDMF6707C Match 74%	Sanyo Semiconductor/ON Semiconductor MODULE DRMOS 50A 40-PQFN	FDMF6820A vs FDMF6707C
