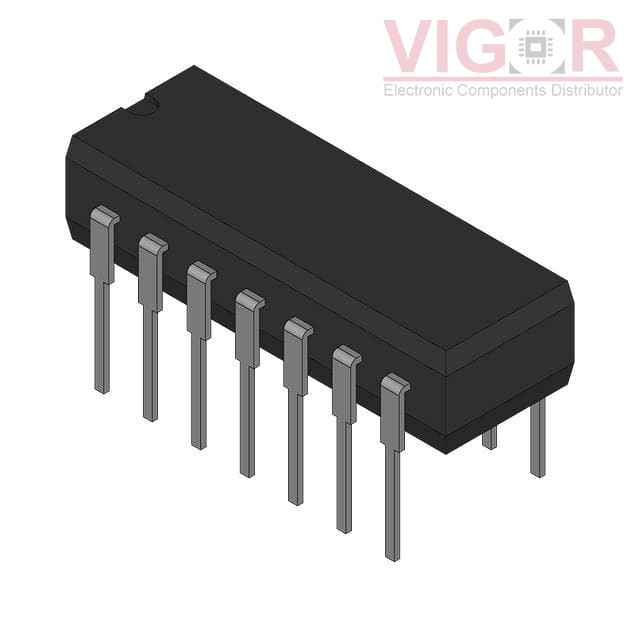

UC3770BNG4

Part No :: UC3770BNG4

Manufacturer: VIGOR

VIGOR # :: 3924158

Description: IC BRIDGE DRIVER PAR 16DIP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: UC3770BNG4 PDF

Country of origin: -

Date code: -

UC3770BNG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	General Purpose, Stepper Motors
Interface:	Logic
Load Type:	Inductive
Technology:	Bipolar
Rds On (Typ):	-
Current - Output / Channel:	2A
Current - Peak Output:	-
Voltage - Supply:	4.75V ~ 5.3V
Voltage - Load:	10V ~ 45V
Operating Temperature:	0°C ~ 150°C (TJ)
Features:	-
Fault Protection:	Over Temperature
Mounting Type:	Through Hole
Package / Case:	16-DIP (0.300", 7.62mm)
Supplier Device Package:	16-PDIP

Alternative Products

Part Number	Manufacturer & Description	Compare
UC3770BN Match 100%	Texas Instruments IC BRIDGE DRIVER PAR 16DIP	UC3770BNG4 vs UC3770BN
UC3770AN Match 100%	Texas Instruments IC BRIDGE DRIVER PAR 16DIP	UC3770BNG4 vs UC3770AN
UC3770ANG4 Match 100%	Texas Instruments IC BRIDGE DRIVER PAR 16DIP	UC3770BNG4 vs UC3770ANG4
