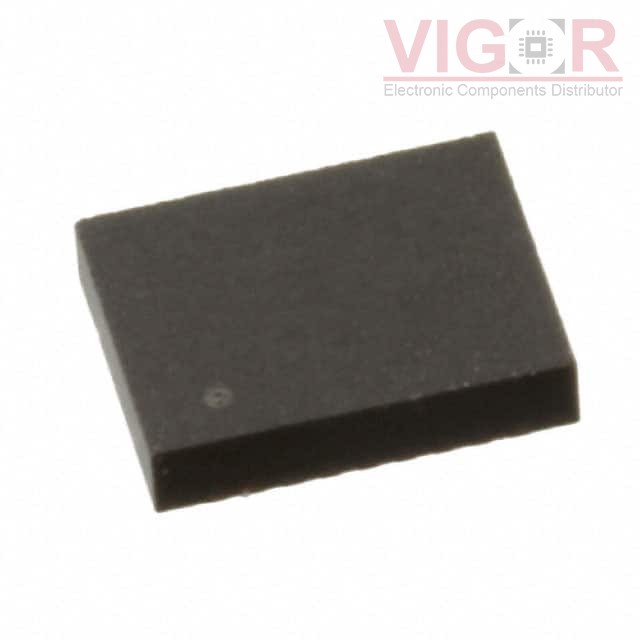

CSD97394Q4M

Part No :: CSD97394Q4M

Manufacturer: VIGOR

VIGOR # :: 3924205

Description: CSD97394 - SYNCHRONOUS BUCK NEXF

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: CSD97394Q4M PDF

Country of origin: -

Date code: -

CSD97394Q4M Specifications

Type	Description
Series:	NexFET™
Package:	Bulk
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	Synchronous Buck Converters
Interface:	PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	-
Current - Output / Channel:	20A
Current - Peak Output:	45A
Voltage - Supply:	4.5V ~ 5.5V
Voltage - Load:	4.5V ~ 24V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	Shoot-Through, UVLO
Mounting Type:	Surface Mount
Package / Case:	8-PowerVFDFN
Supplier Device Package:	8-VSON (3.5x4.5)
