BTN70301EPAXUMA1

Part No :: BTN70301EPAXUMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3924341

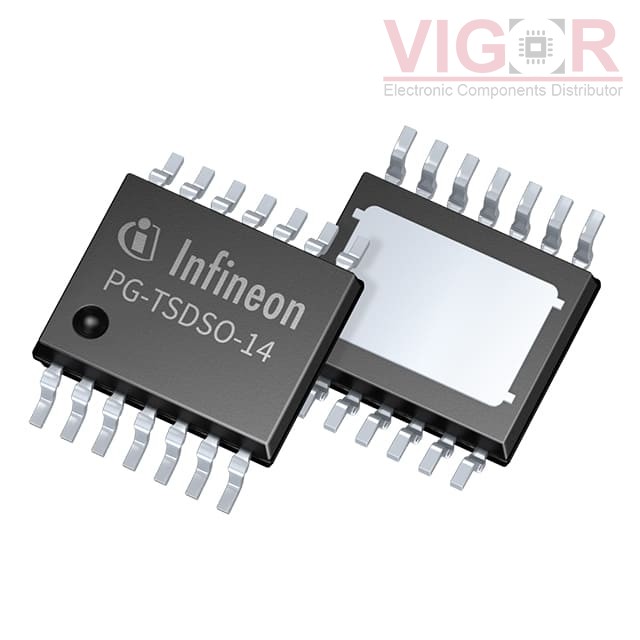

Description: IC HALF BRIDGE DRIVER TSDSO-14

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BTN70301EPAXUMA1 PDF

Country of origin: -

Date code: -

BTN70301EPAXUMA1 Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	SMART7
Rds On (Typ):	20mOhm LS, 12mOhm HS
Current - Output / Channel:	7A
Current - Peak Output:	17A
Voltage - Supply:	6V ~ 18V
Voltage - Load:	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Diagnostic Enable, Enable, SENSE
Fault Protection:	Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	PG-TSDSO-14
