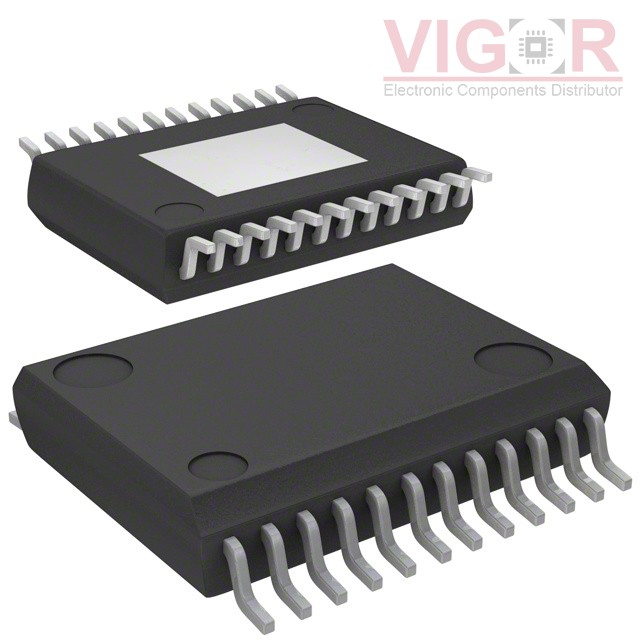

NCV7723DQBR2G

Part No :: NCV7723DQBR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3924377

Description: 6 CHANNEL HALF-BRIDGE DRIVER

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: NCV7723DQBR2G PDF

Country of origin: -

Date code: -

NCV7723DQBR2G Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Half Bridge (3)
Applications:	DC Motors, General Purpose
Interface:	Logic, PWM, SPI
Load Type:	Capacitive and Resistive
Technology:	NMOS
Rds On (Typ):	800mOhm LS, 800mOhm HS
Current - Output / Channel:	500mA
Current - Peak Output:	1.1A
Voltage - Supply:	3.15V ~ 5.25V
Voltage - Load:	3.15V ~ 5.25V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Charge Pump
Fault Protection:	Over Current, Over Temperature, Over Voltage, UVLO
Mounting Type:	Surface Mount
Package / Case:	24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	24-SSOP
