TLE9202EDXUMA1

TLE9202EDXUMA1

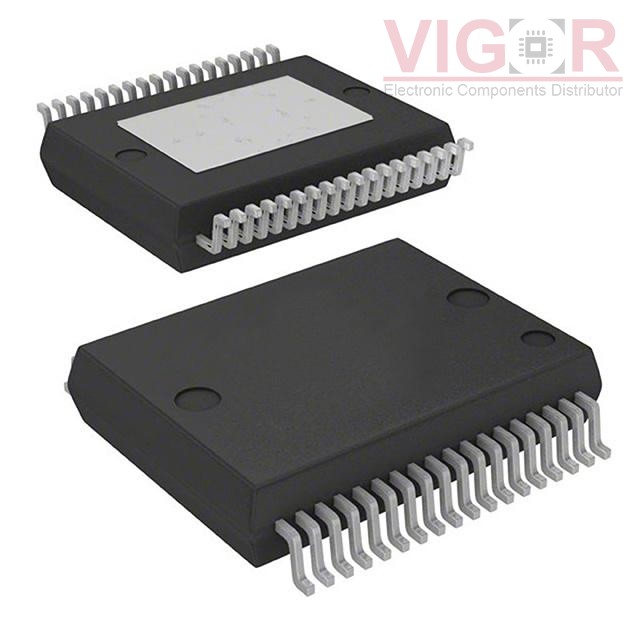

Image is for reference,
please contact us to get the real picture

Part No :

TLE9202EDXUMA1

Manufacturer
VIGOR
Description
TLE9202 - INTEGRATED FULL-BRIDGE
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Oct 02 - Oct 06 2025
DataSheet
TLE9202EDXUMA1 PDF
Availability
2466 pieces
Unit Price
$3.36000

Current price of TLE9202EDXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLE9202EDXUMA1 Specifications
Type Description
Series:Automotive, AEC-Q100
Package:Bulk
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:SPI
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):100mOhm LS, 100mOhm HS
Current - Output / Channel:6A
Current - Peak Output:-
Voltage - Supply:2.9V ~ 5.5V
Voltage - Load:5V ~ 28V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:36-BFSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package:PG-DSO-36-72
