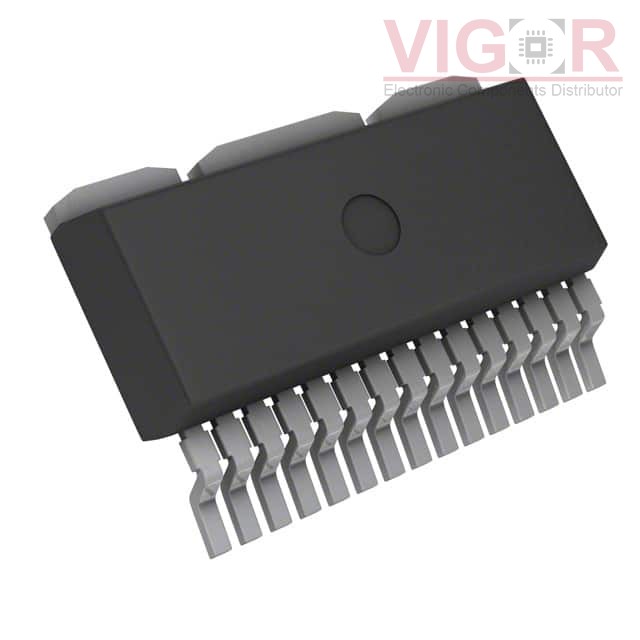

BTS7811KDTMA1

Part No :: BTS7811KDTMA1

Manufacturer: VIGOR

VIGOR # :: 3924421

Description: BUFFER/INVERTER PERIPHL DRIVER

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BTS7811KDTMA1 PDF

Country of origin: -

Date code: -

BTS7811KDTMA1 Specifications

Type	Description
Series:	TrilithIC™
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	14mOhm LS, 26mOhm HS
Current - Output / Channel:	-
Current - Peak Output:	42A
Voltage - Supply:	1.8V ~ 42V
Voltage - Load:	1.8V ~ 42V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package:	P-TO263-15-1
