BTS7710GPNTMA1

Part No :: BTS7710GPNTMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4920888

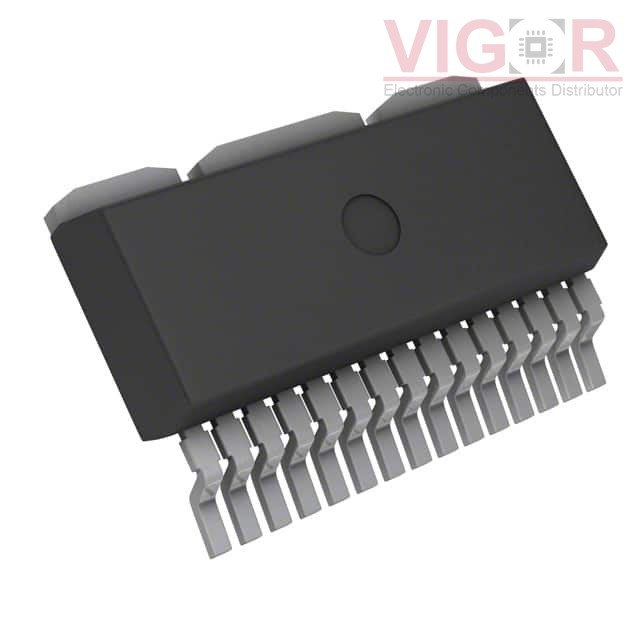

Description: IC SW TRILITHIC 110MOHM TO263-15

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: BTS7710GPNTMA1 PDF

Country of origin: -

Date code: -

BTS7710GPNTMA1 Specifications

Type	Description
Series:	TrilithIC™
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose
Interface:	Logic
Load Type:	Inductive
Technology:	DMOS
Rds On (Typ):	40mOhm LS, 70mOhm HS
Current - Output / Channel:	-
Current - Peak Output:	15A
Voltage - Supply:	1.8V ~ 42V
Voltage - Load:	1.8V ~ 42V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	ESD, Over Temperature, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package:	P-TO263-15-1
