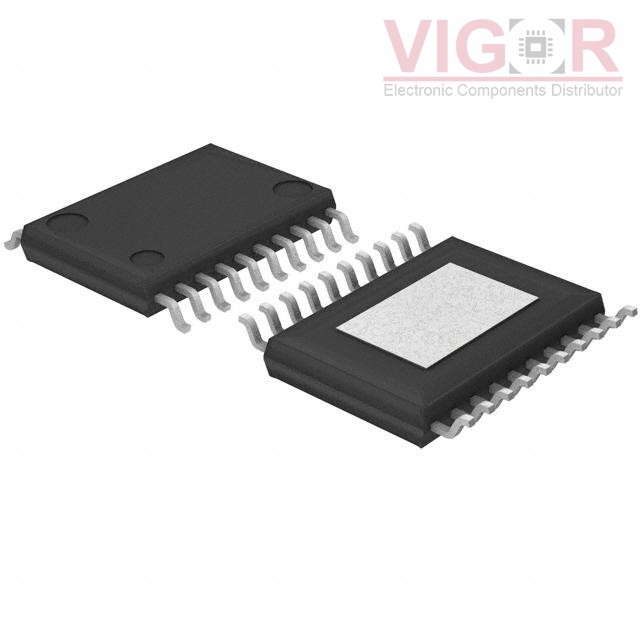

MP8042DF-LF-Z

Part No :: MP8042DF-LF-Z

Manufacturer: MPS (Monolithic Power Systems)

Description: IC MOTOR DRIVER

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: MP8042DF-LF-Z PDF

Availability: 173 pieces

Unit Price: ~~$0.00000~~

Current price of MP8042DF-LF-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MP8042DF-LF-Z Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	General Purpose
Interface:	PWM
Load Type:	Inductive
Technology:	Power MOSFET
Rds On (Typ):	150mOhm
Current - Output / Channel:	-
Current - Peak Output:	5A
Voltage - Supply:	7.5V ~ 24V
Voltage - Load:	7.5V ~ 24V
Operating Temperature:	-40°C ~ 125°C (TJ)
Features:	Status Flag
Fault Protection:	Current Limiting, Over Temperature, UVLO
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	20-TSSOPF

Please confirm the specifications of the products when ordering.
