IRSM506-076DA

Part No :: IRSM506-076DA

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4921008

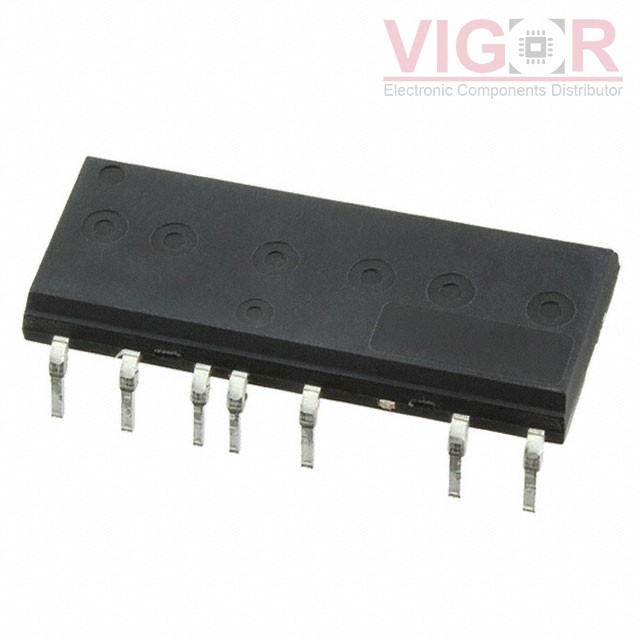

Description: IC MICRO MCM DRIVER 23DIP

Catalog: PMIC - Full, Half-Bridge Drivers

DataSheet: IRSM506-076DA PDF

Country of origin: -

Date code: -

IRSM506-076DA Specifications

Type	Description
Series:	µIPM™-DIP
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	IGBT
Rds On (Typ):	-
Current - Output / Channel:	4A
Current - Peak Output:	15A
Voltage - Supply:	13.5V ~ 16.5V
Voltage - Load:	480V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Through Hole
Package / Case:	23-PowerDIP Module (0.551", 14.00mm)
Supplier Device Package:	23-DIP
