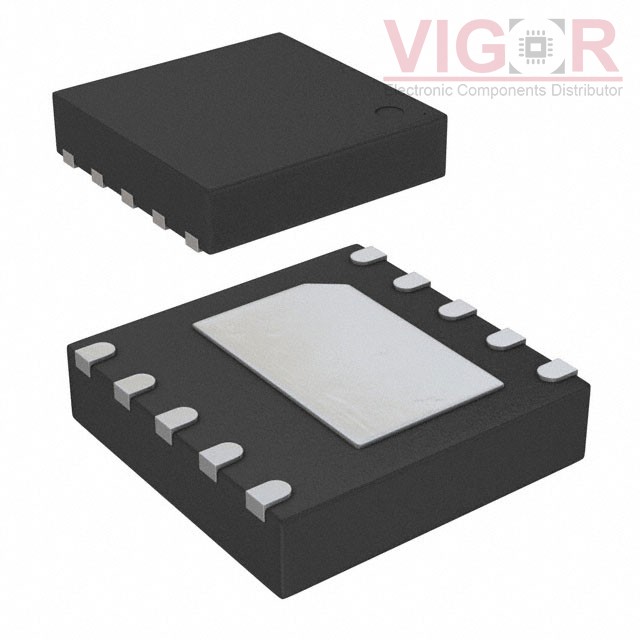

NCP5109BMNTWG

Part No :: NCP5109BMNTWG

Manufacturer: VIGOR

VIGOR # :: 3878008

Description: MOSFET / IGBT DRIVERS, DUAL INPU

Catalog: PMIC - Gate Drivers

DataSheet: NCP5109BMNTWG PDF

Country of origin: -

Date code: -

NCP5109BMNTWG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 2.3V
Current - Peak Output (Source, Sink):	250mA, 500mA
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	200 V
Rise / Fall Time (Typ):	85ns, 35ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	10-VFDFN Exposed Pad
Supplier Device Package:	10-DFN (3x3)
