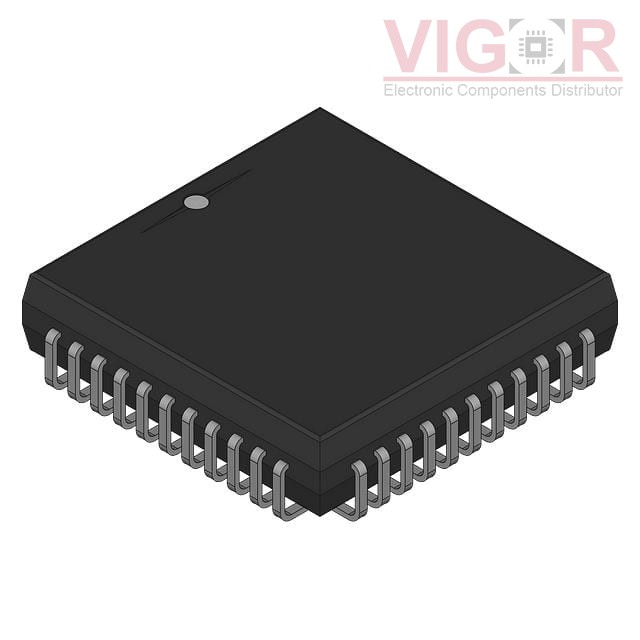

IRS2330DJTRPBF

Part No :: IRS2330DJTRPBF

Manufacturer: VIGOR

VIGOR # :: 3878014

Description: 3-PHASE-BRIDGE DRIVER

Catalog: PMIC - Gate Drivers

DataSheet: IRS2330DJTRPBF PDF

Country of origin: -

Date code: -

IRS2330DJTRPBF Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	3-Phase
Number of Drivers:	6
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	0.8V, 0.8V
Current - Peak Output (Source, Sink):	250mA, 500mA
Input Type:	Inverting
High Side Voltage - Max (Bootstrap):	600 V
Rise / Fall Time (Typ):	80ns, 35ns
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	44-LCC (J-Lead), 32 Leads
Supplier Device Package:	44-PLCC, 32 Leads (16.58x16.58)
