ISL78420AVEZ

Part No :: ISL78420AVEZ

Manufacturer: Intersil (Renesas Electronics America)

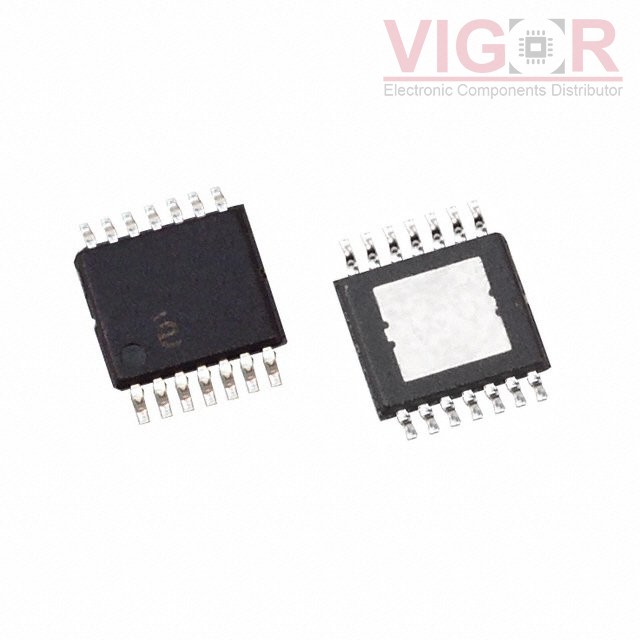

Description: IC GATE DRVR HALF-BRIDG 14HTSSOP

Catalog: PMIC - Gate Drivers

DataSheet: ISL78420AVEZ PDF

Availability: 893 pieces

Unit Price: ~~$4.66000~~

Current price of ISL78420AVEZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ISL78420AVEZ Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tube
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	8V ~ 14V
Logic Voltage - VIL, VIH:	1.8V, 4V
Current - Peak Output (Source, Sink):	2A, 2A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	114 V
Rise / Fall Time (Typ):	10ns, 10ns
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	14-HTSSOP
