LM5109ASD

LM5109ASD

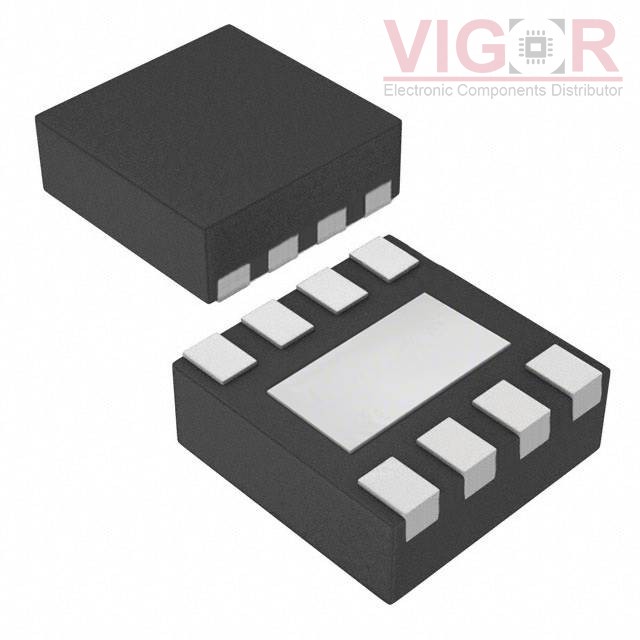

Image is for reference,
please contact us to get the real picture

Part No :

LM5109ASD

Manufacturer
VIGOR
Description
HALF BRIDGE BASED MOSFET DRIVER,
Catalog
PMIC - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
LM5109ASD PDF
Availability
1000 pieces
Unit Price
$0.68000

Current price of LM5109ASD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM5109ASD Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Driven Configuration:Half-Bridge
Channel Type:Independent
Number of Drivers:2
Gate Type:N-Channel MOSFET
Voltage - Supply:8V ~ 14V
Logic Voltage - VIL, VIH:0.8V, 2.2 V
Current - Peak Output (Source, Sink):1A, 1A
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):108 V
Rise / Fall Time (Typ):15ns, 15ns
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-WDFN Exposed Pad
Supplier Device Package:8-WSON (4x4)
