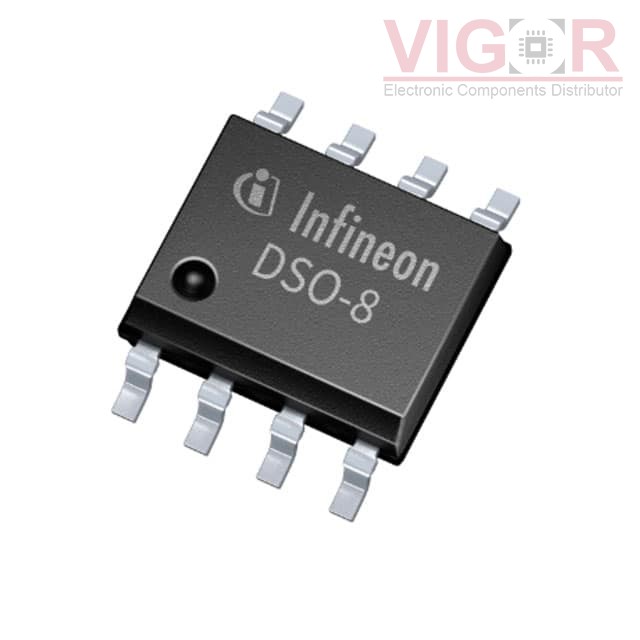

2ED2182S06FXUMA1

Part No :: 2ED2182S06FXUMA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 3879636

Description: IC HALF BRIDGE GATE DRIVER 650V

Catalog: PMIC - Gate Drivers

DataSheet: 2ED2182S06FXUMA1 PDF

Country of origin: -

Date code: -

2ED2182S06FXUMA1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Synchronous
Number of Drivers:	1
Gate Type:	IGBT, N-Channel MOSFET
Voltage - Supply:	10V ~ 20V
Logic Voltage - VIL, VIH:	1.1V, 1.7V
Current - Peak Output (Source, Sink):	2.5A, 2.5A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	650 V
Rise / Fall Time (Typ):	15ns, 15ns
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	PG-DSO-8-69
