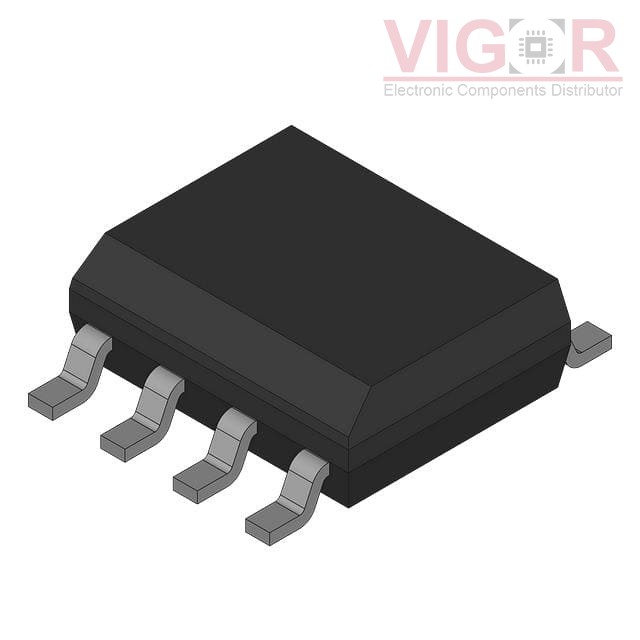

UCC27200DDAG4

Part No :: UCC27200DDAG4

Manufacturer: VIGOR

VIGOR # :: 3880025

Description: HALF BRIDGE BASED PERIPHERAL DRI

Catalog: PMIC - Gate Drivers

DataSheet: UCC27200DDAG4 PDF

Country of origin: -

Date code: -

UCC27200DDAG4 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	8V ~ 17V
Logic Voltage - VIL, VIH:	3V, 8V
Current - Peak Output (Source, Sink):	3A, 3A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	120 V
Rise / Fall Time (Typ):	8ns, 7ns
Operating Temperature:	-40°C ~ 140°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO PowerPad
