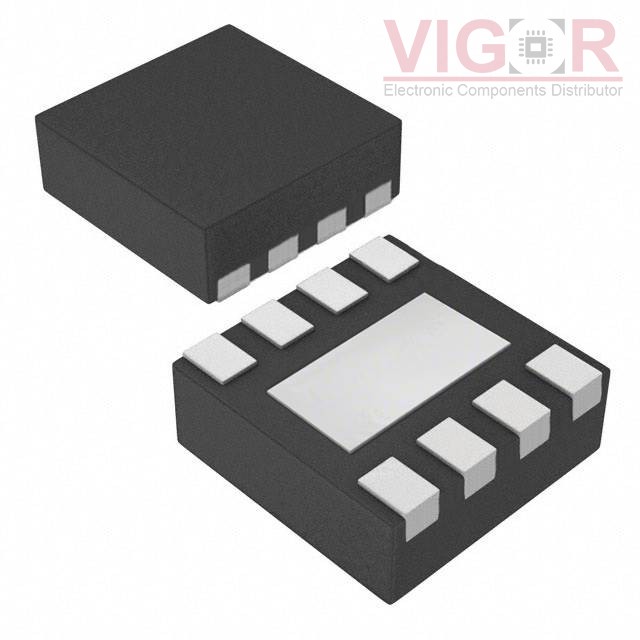

LM5109BQNGTTQ1

Part No :: LM5109BQNGTTQ1

Manufacturer: Texas Instruments

Description: IC GATE DRVR HALF-BRIDGE 8WSON

Catalog: PMIC - Gate Drivers

DataSheet: LM5109BQNGTTQ1 PDF

Availability: 4600 pieces

Current price of LM5109BQNGTTQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LM5109BQNGTTQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Driven Configuration:	Half-Bridge
Channel Type:	Independent
Number of Drivers:	2
Gate Type:	N-Channel MOSFET
Voltage - Supply:	8V ~ 14V
Logic Voltage - VIL, VIH:	0.8V, 2.2V
Current - Peak Output (Source, Sink):	1A, 1A
Input Type:	Non-Inverting
High Side Voltage - Max (Bootstrap):	108 V
Rise / Fall Time (Typ):	15ns, 15ns
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-WFDFN Exposed Pad
Supplier Device Package:	8-WSON (4x4)
